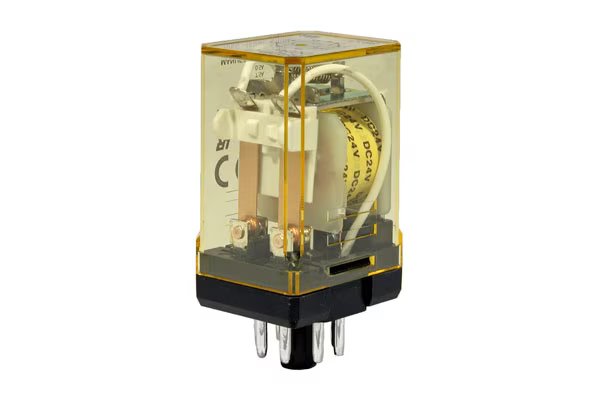

IDEC RELAY, DPDT, 24V DC, 10A ROUND 8 PIN RELAY RR2P-UDC24

Product Code: RR2P-UDC24

The IDEC RR2P-UDC24 is a robust DPDT relay designed for demanding industrial environments. This 24V DC, 10A relay features a wear-resistant self-holding mechanism, ensuring high durability against vibration and shock. It's specifically engineered for latching applications, providing reliable performance where it's most needed. Additionally, this round 8-pin relay meets RoHS compliance standards, adhering to environmental safety regulations.

Technical Specifications

Operating Humidity 5 to 85% RH (No Condensation)
Terminal Shape Pin Terminal
Resistance to Shock (m/s²) 100
Model Basic
Brand IDEC
Ambient Temperature Range (°C) -25 to 40
Operational Temperature Range (°C) -25 to 40
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver
Contact Resistance (mO) 30
Contacts DPDT
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 10,000,000 Operations
No. of Pins 8
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 3VA (50Hz), 2.5VA (60Hz)
Power Consumption (W) DC:1.5W
Rated Current (A) 10
Resistance to Vibrations 10 to 55Hz
Terminal Type Pin
Dimensions (mm) 29.3W x 56H x 36.4D
Weight (g) 90
