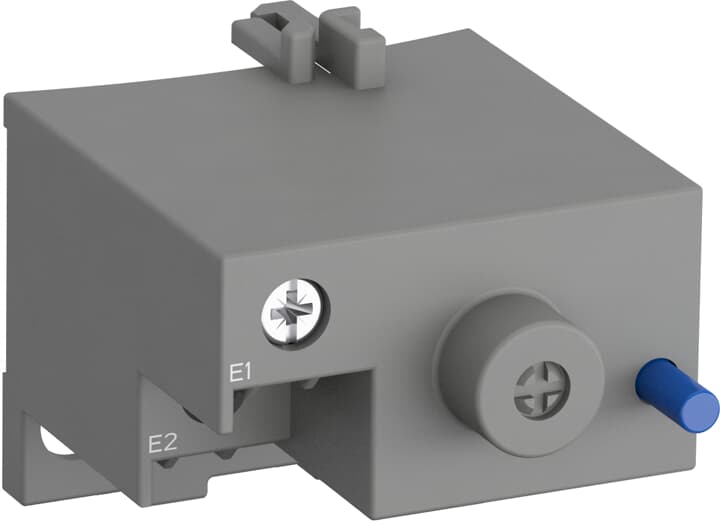

ABB REMOTE RESET COIL DRS-F-01

The DRS-F-01 remote reset coil is used to remotely reset the thermal overload relays TF42, TF65 and TF96 as well as the electrical overload relays EF19 to EF1250. To enable remote resetting, the overload relay needs to be in "manual" reset mode. The coil is not approved for continuous operation. Pulse duration 0.2 ... 0.35 s.
