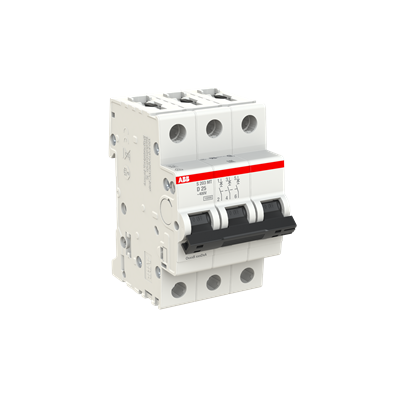

ABB S203MT-D25 Miniature Circuit Breaker 11.3kA 3-P 25A 400V D-Curve

Product Code: S203MT-D25

  • Rated Current: 25 A, Voltage: 400 V
  • Breaking Capacity of 11.3 kA
  • Screw Clamp Terminals for secure connection
  • Complies with IEC/EN 60898-1 & IEC/EN 60947-2
  • Operates in -25 to 55°C, stores at -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Curve Type D
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Number of Poles 3
Power Loss 9.6 W
Rated Current 25 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400 V
Standards and Approvals IEC/EN 60898-1, IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 52.5 mm
