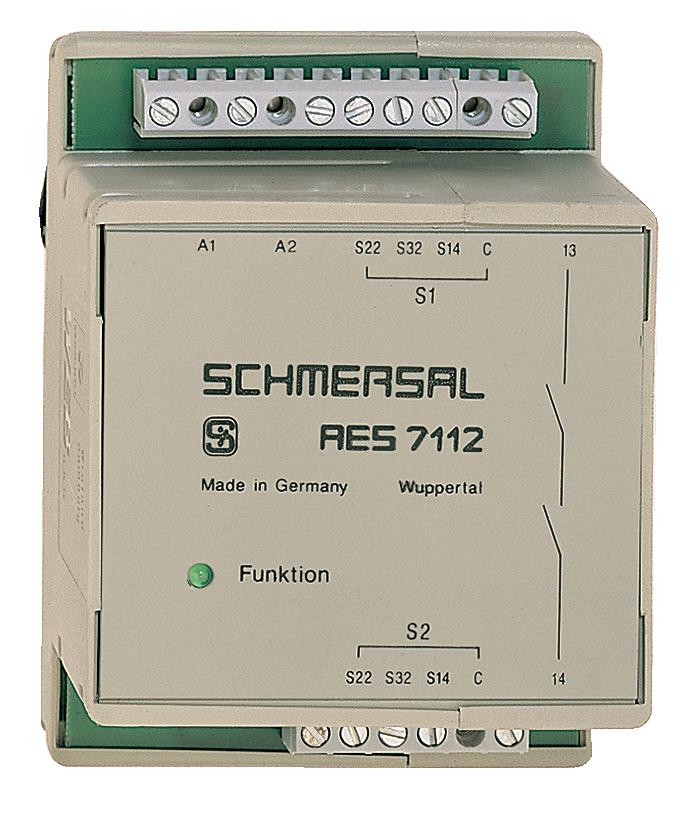

SCHMERSAL AES7112.3 24VAC SAFETY-MONITORING MODULE 101120016

Product Code: 101120016

Enhance your machine safety with the Schmersal AES Series Safety-monitoring Module. Designed for Stop-Category 0 applications, this module features an electronic fuse and advanced protection capabilities including wire breakage detection and short-circuit recognition. It ensures operational continuity with an automatic reset function that activates after any disconnection of supply voltage. The module is equipped with integral system diagnostics, one LED indicator, two openers, four shutters, and one safety contact. With a rated operating voltage of 24 VAC and a low power consumption of 1.5 W, it meets utilisation categories AC-15 (230 VAC, 2 A) and DC-13 (24 VDC, 2 A), making it a reliable choice for various machine safety needs. Trust in the quality and expertise that Schmersal brings to your industrial safety solutions.

Technical Specifications

Actuator Type Roller lever H65
Enclosure Material Metal film
Gross Weight (g) 730.6
Net Weight (g) 1058
Installation Conditions Quasi-flush
Wire Cross-Section 0.34 mm
Enclosure Coating Material Painted
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series AES
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-37-18-19
ETIM 7.0 EC000222
ETIM 6.0 EC001449
eCl@ss Number, Version 11.0 27-27-26-02
Protection Class of Operating Resource 2
Cable Note All indications including the conductor ferrules.
Recommended Safety Switchgear SRB-E-301ST | SRB-E-201LC
Maximum Ambient Temperature (°C) 75
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.34
Mounting Type Snaps onto standard DIN rail to EN 60715
Storage Temperature (°C) -25 to 70
Contact Material Silver
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Maximum Switching Capacity (W) 3
Minimum Actuating Speed (mm/min) 60
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 40
No. of Auxiliary Contacts 3
No. of Safety Contacts 2
Nominal Power (W) 1.5
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Maximum Operational Voltage DC (V) 24
Rated Operating Current (mA) 50
Rated Short-circuit Current (A) 400
Resistance to Shock (g/ms) 110 / 4 - 30 / 18
Switching Element 1 NO contact, 1 NC contacts
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Cable Length (m) 3
Height (mm) 69
Utilisation Category AC-1
Width (mm) 22.5
Utilisation Category DC-13 0.05 A
Sensor Length (mm) 38
Sensor Height (mm) 851
Degree of Protection IP20
Pollution Degree 3
Standards EN IEC 60947-5-1
