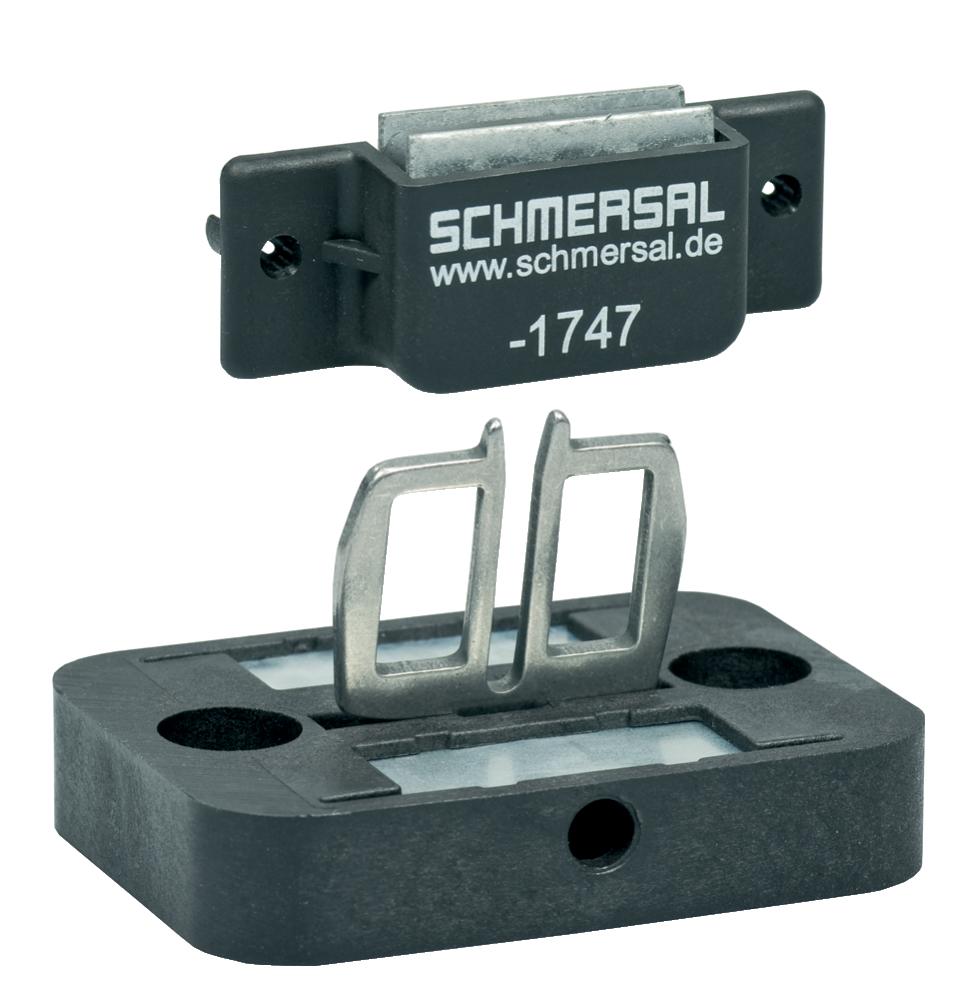

SCHMERSAL AZ15/16-B3-1747 WITH MAGNETIC LATCH SAFETY SWITCH WITH SEPARATE ACTUATOR 101096090

Product Code: 101096090

Enhance your machine safety with the Schmersal AZ15/16 series safety switch, featuring a versatile straight/flexible actuator designed for an actuating radius of 32 mm. This robust safety switch comes equipped with a magnetic latch, ensuring secure locking and reliable operation in various industrial applications. Trust in the Schmersal brand to deliver quality and durability for your machinery's protection needs.

Technical Specifications

Brand SCHMERSAL
Actuator Type Offset roller lever
Cable Length (m) 10
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP66 / IP67
Depth (mm) 121
Design of Control Element p-type
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC001449
ETIM 7.0 EC000030
Explosion Protection Category 3D | 3G
Gross Weight (g) 240
Height (mm) 80
Housing Construction Form Norm construction design
Installation Conditions Quasi-flush
Latching Force (N) 40
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 55
Maximum Bounce Duration (ms) 3
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Switching Capacity (W) 10
Minimum Actuating Force (N) 9
Minimum Actuating Speed (mm/min) 27
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 2000000 Operations
Minimum Positive Break Force (N) 19
Mounting Type Screws
Net Weight (g) 23
No. of Auxiliary Contacts 1
No. of Normally-open Contacts 1
No. of Safety Contacts 2
Number of Actuating Directions 3
Overvoltage Category 3
Pollution Degree 2
Positive Break Travel (mm) 11
Protection Class of Operating Resource 2
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 300
Rated Operating Current (mA) 700
Rated Short-circuit Current (A) 400
Recommended Actuator AZ/AZM201-B1 | AZ/AZM201-B30
Recommended Safety Switchgear SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 92.5
Sensor Length (mm) 33
Series AZ15/16
Standards EN IEC 60947-5-1
Storage Temperature (°C) -40 to 85
Switching Element Opener (NC)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Width (mm) 165
Wire Cross-Section 0.25 mm
Working Principle Mechanical
