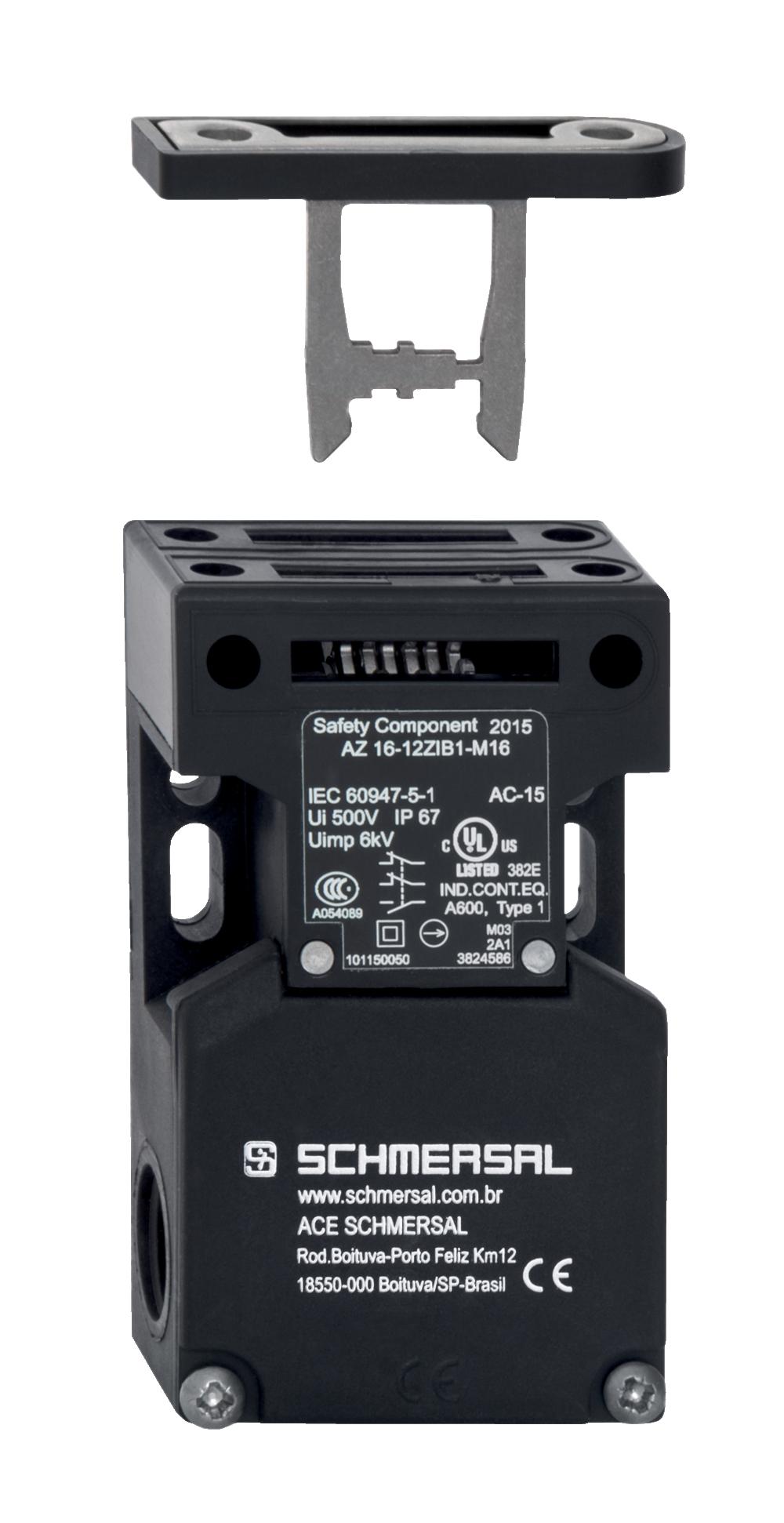

SCHMERSAL AZ 16-12ZIB1-M20-1747SAFETY SWITCHWITH SEPARATE ACTUATOR 101150632

Product Code: 101150632

Technical Specifications

Brand SCHMERSAL
Actuator Material Stainless Steel
Actuator Type Straight
Cable Entry 3 x M20 x 1.5
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Included Tamperproof Screws
Latching Force (N) 30
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Storage Temperature (°C) 85
Minimum Actuating Radius (mm) 250 mm
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 20
Minimum Storage Temperature (°C) -40
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Pollution Degree 3
Positive Break Travel (mm) 8
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Operational Current AC-15 (A) Safety Contacts - 4A
Rated Operational Current DC-13 (A) Safety Contacts - 4A
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 90
Sensor Length (mm) 30
Sensor Width (mm) 52
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
Switching Element NO Contact, NC Contact
Switching Frequency 4000/h
Switching Principle Slow Action, Positive Break NC Contact
Termination Screw Terminals
Thermal Test Current (A) 10
