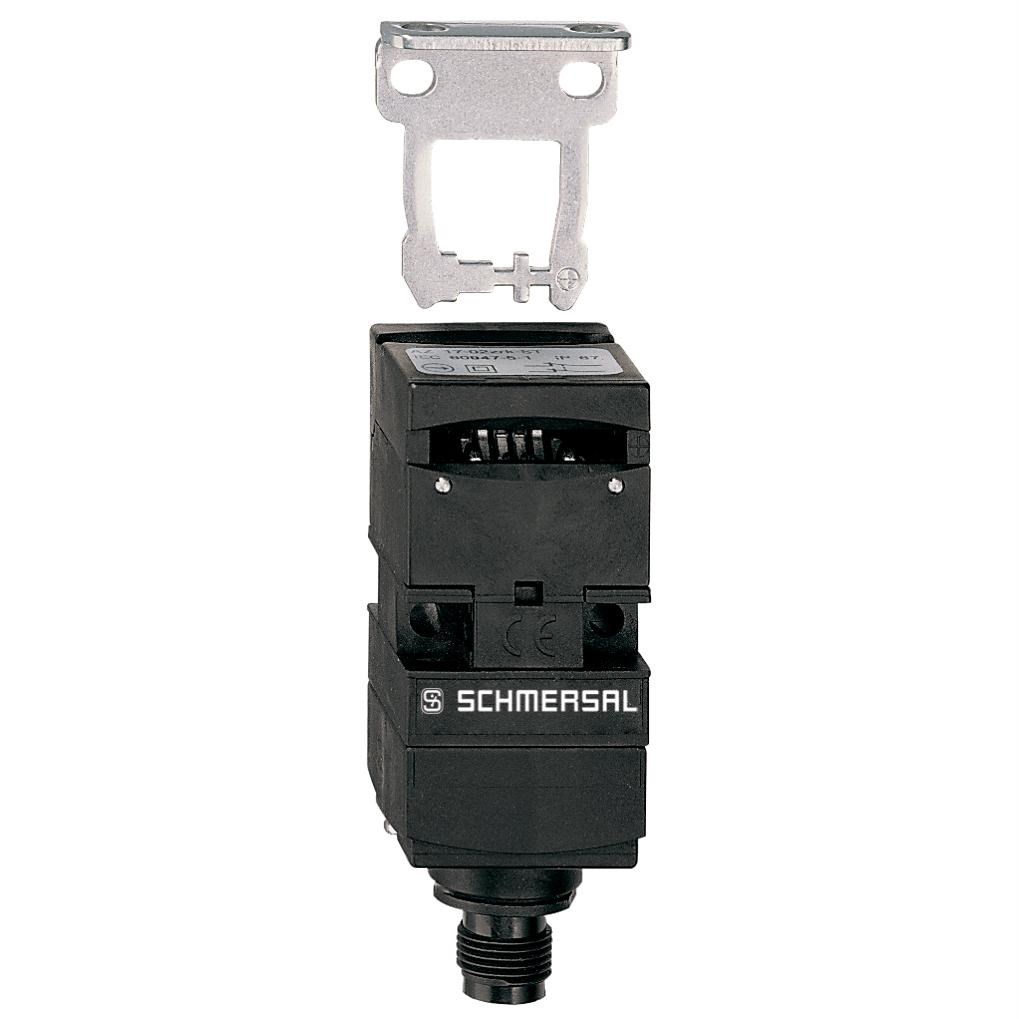

SCHMERSAL AZ 17-11ZI-ST B6L SAFETY SWITCH WITH SEPARATE ACTUATOR 101144085

Product Code: 101144085

The Schmersal AZ17 safety switch is a robust machine safety solution designed with a thermoplastic enclosure and engineered for left-hand operation. This switch features dual contact types, including one normally open (NO) and one normally closed (NC), ensuring versatile integration into various safety circuits. It comes equipped with one auxiliary contact and one safety contact, both capable of handling a thermal test current of 10 A. The unit's connectivity is streamlined through an M12 4-pole connector plug with A-coding for reliable signal transmission. For AC applications, the switch operates within the utilization category AC-15 at 230 VAC with a rated current of 4 A. Similarly, in DC circuits, it falls under the utilization category DC-13 at 24 VDC, also supporting up to 4 A. This combination of features makes the Schmersal AZ17 an essential component for ensuring machine safety in various industrial settings.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ17
