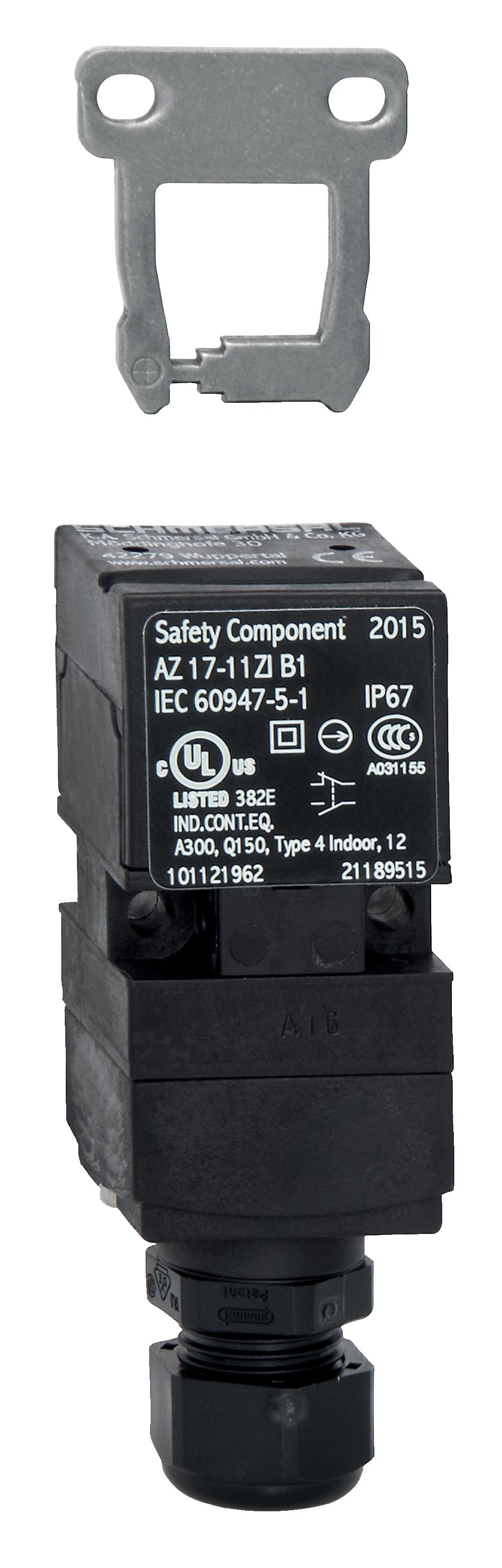

SCHMERSAL AZ17-11ZRI-B1 SAFETY SWITCH WITH SEPARATE ACTUATOR 101136304

Product Code: 101136304

The Schmersal AZ17 safety switch is engineered for machine safety applications, particularly suitable for sliding doors. This robust switch features a thermoplastic enclosure and boasts a higher latching force to ensure secure locking. It comes equipped with one auxiliary contact and one safety contact, ensuring reliable performance in critical systems. The terminal connector utilizes an IDC method for quick and efficient wire termination. With both NO and NC contact elements, the switch offers versatility in control circuit design. It can handle a thermal test current of 10 A and operates effectively under multiple utilisation categories: AC-15 at 230 VAC with a 4 A rating, as well as DC-13 at 24 VDC also with a 4 A rating. This makes the AZ17 series an adaptable solution for various electrical requirements within machine safety protocols.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ17
