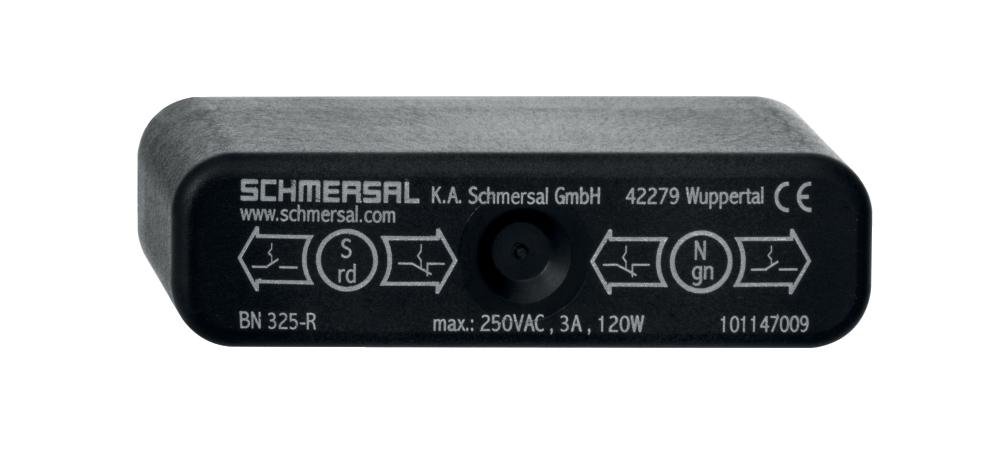

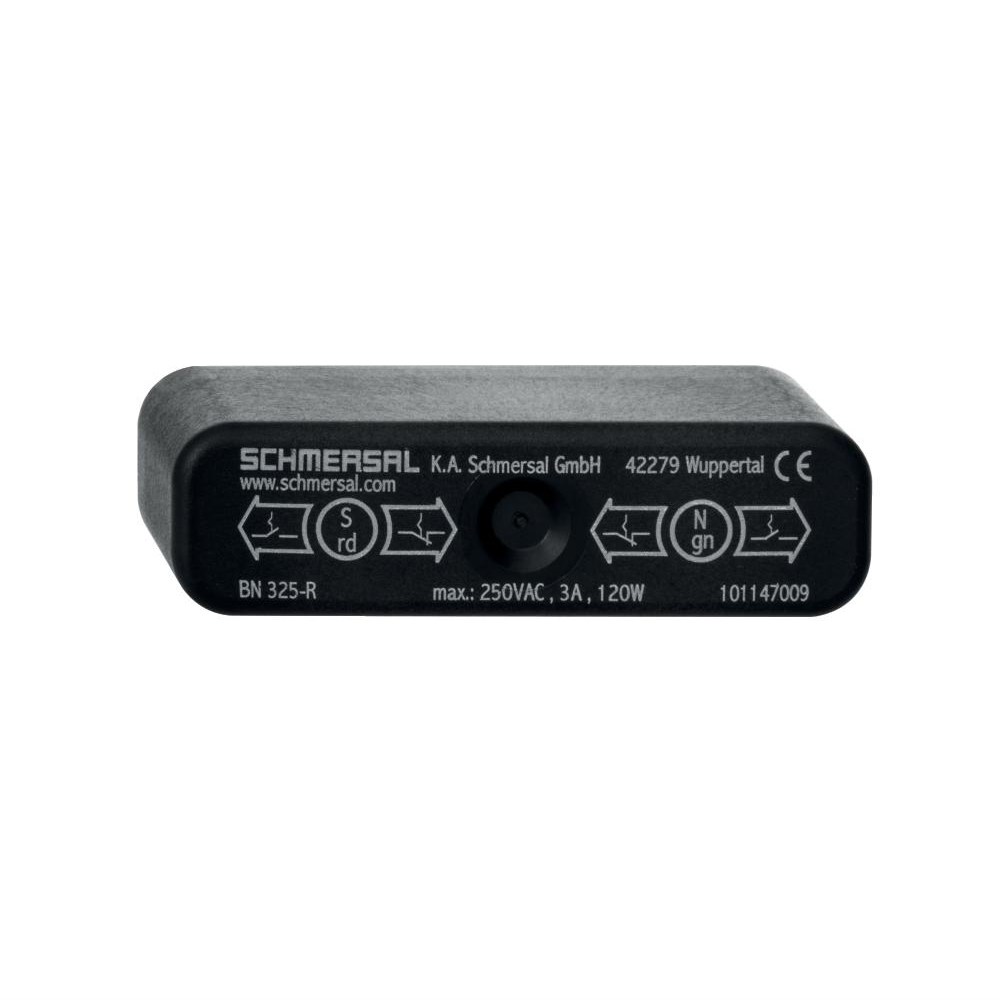

SCHMERSAL BN 325-R-1279 3,0MMAGNETIC REED SWITCH 101147095

Product Code: 101147095

Technical Specifications

Housing Material Glass-fibre, Reinforced Thermoplastic
Minimum Ambient Temperature (°C) -25
Brand SCHMERSAL
Recommended Actuator BP 10 S
Maximum Ambient Temperature (°C) 70
Wire Cross Section (mm²) 0.75mm² (Diameter)
Actuating Element Magnet
Maximum Actuating Speed (m/s) 18
Maximum Switching Capacity (VA) 120
Maximum Switching Capacity (W) 120
Maximum Switching Current (A) 3
Minimum Mechanical Life 1000000000 Operations
No. of Snap in Contacts 1
Repeat Accuracy (mm) 0.25
Resistance to Shock (g/ms) 50g / 11ms
Resistance to Vibrations 10 ... 55Hz, Amplitude 1mm
Cable Length (m) 3
Sensor Length (mm) 24
Sensor Width (mm) 85
Sensor Height (mm) 26
