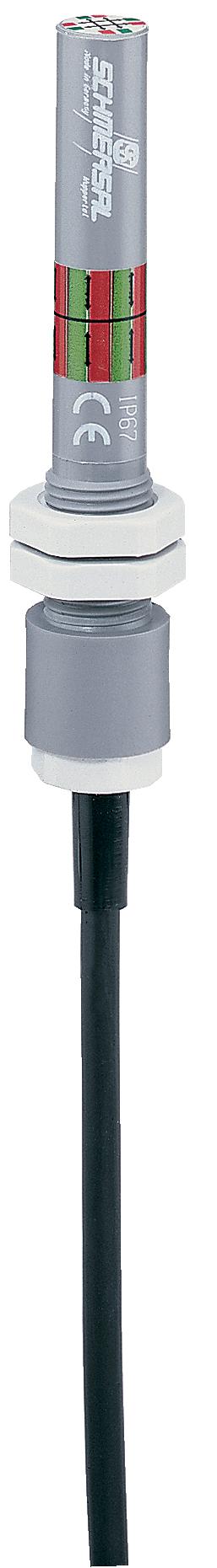

SCHMERSAL BN 65-10ZMAGNETIC REED SWITCH 101055787

Product Code: 101055787

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Cable Length (m) 1
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Actuating Speed (m/s) 18
Maximum Ambient Temperature (°C) 75
Maximum Bounce Duration (ms) 0.6
Maximum Switching Capacity (W) 120
Maximum Switching Current (A) 3
Maximum Switching Frequency (Hz) 300
Maximum Switching Voltage AC (V) 250
Minimum Ambient Temperature (°C) -25
Minimum Bounce Duration (ms) 0.3
Minimum Mechanical Life 1000000000 Operations
No. of Normally-open Contacts 1
Recommended Actuator BP 10
Repeat Accuracy (mm) 0.25
Resistance to Shock (g/ms) 30g, on Sine Wave Oscillation
Resistance to Vibrations 10 ... 55Hz, Amplitude 1mm
Sensor Diameter (mm) 13
Sensor Length (mm) 103
Switching Element NO Contact
Switching Frequency 1080000/h
Termination Cable
Wire Cross Section (mm²) 0.75mm² (Diameter)
