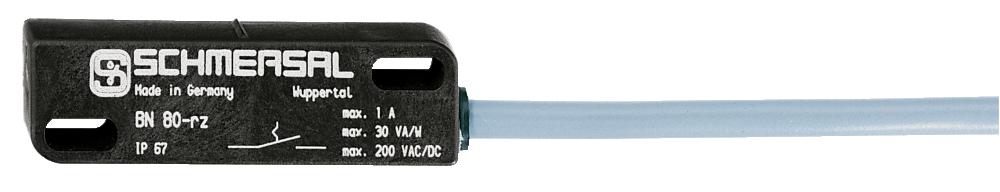

SCHMERSAL BN80-RZ MAGNETIC REED SWITCH 101139647

Product Code: 101139647

The Schmersal BN 80 series magnetic reed switch is engineered for precision and durability. This flat-designed position sensor features a robust thermoplastic enclosure with a block form factor and a cable terminal connector. It boasts a bistable contact switching element, ensuring reliable operation within a 0 to 60 mm activation distance. Optimized for versatility, it can handle switching voltages up to 250 VAC or DC and supports a maximum switching current of 0.5 A with a switching capacity of up to 8 W. The reed contacts are designed for longevity, functioning effectively in temperatures ranging from -25°C to 75°C. With an IP67 rating, this sensor promises consistent performance in demanding environments, making it an ideal choice for industrial applications requiring precise position sensing with long service life.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage AC (V) 250
Maximum Nominal Output Voltage DC (V) 250
Maximum Temperature (°C) 75
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.5
Nominal Power (W) 8
Series BN 80
