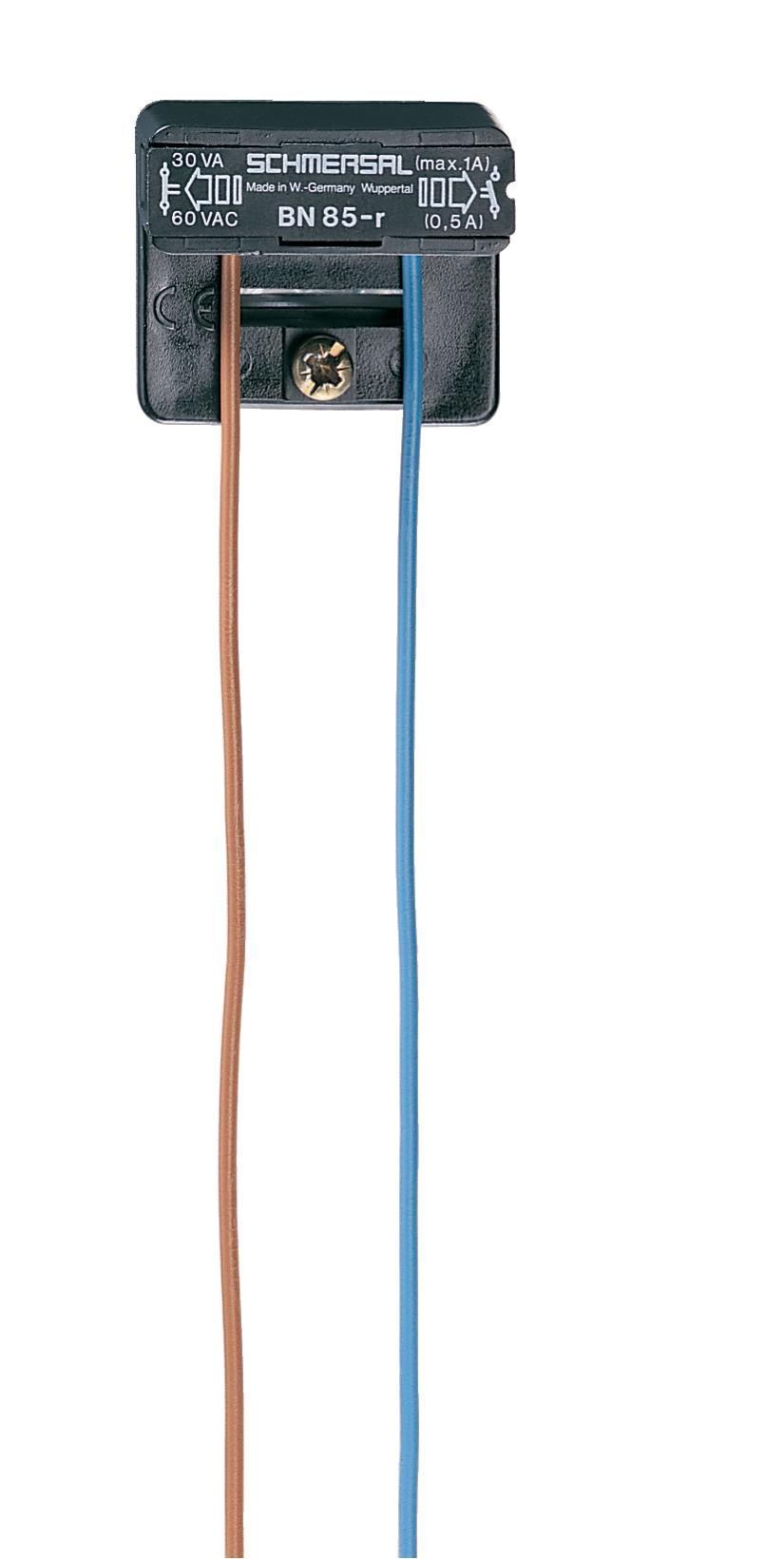

SCHMERSAL BN 85-R-1824-3 5,0M MAGNETIC REED SWITCH 101114790

Product Code: 101114790

Explore the Schmersal BN 85 Series Magnetic Reed Switch, a precision position sensor designed for industrial applications requiring reliable and durable performance. Encased in a robust thermoplastic block, this switch features a bistable contact mechanism with actuation from the front, ensuring consistent operation. It offers a flexible sensing range of 2 mm to 40 mm and can handle maximum switching voltages up to 60 VAC or DC. With a maximum switching current of 1 A and a capacity of 30 VA, it is suitable for various control systems. The BN 85 series is engineered for longevity and ease of installation, featuring a clamping foot mounting and sheathed cable connection. Operating within a temperature range from 0°C to 75°C and rated at IP40, it is built to withstand challenging environments. Note that actuators are available separately to complement this sensor's functionality. Ideal for engineers seeking efficient and reliable position sensing solutions, Schmersal's magnetic reed switch is an excellent choice for maintaining precision in automated processes.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP40
Maximum Nominal Output Voltage AC (V) 60
Maximum Nominal Output Voltage DC (V) 60
Maximum Temperature (°C) 75
Minimum Temperature (°C) 0
Mounting Type Threaded
Nominal Output Current (A) 1
Nominal Power (W) 30
Series BN 85
