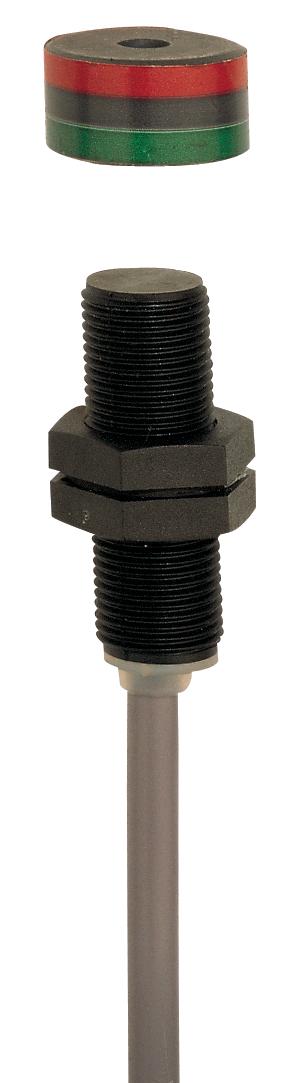

SCHMERSAL MAGNETIC SAFETY SENSOR 101149462

Product Code: 101149462

Technical Specifications

Brand SCHMERSAL
Actuator Type Roller lever
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 High
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-37-12-13
eCl@ss Number, Version 9.0 27-37-12-11
Enclosure Material Stainless steel (V4A)
ETIM 6.0 EC000222
ETIM 7.0 EC000221
Gross Weight (g) 520
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 0.3
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000000 Operations
Minimum Positive Break Force (N) 20
Net Weight (g) 430
No. of Auxiliary Contacts 2
No. of Safety Contacts 3
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 36
Sensor Length (mm) 71.5
Standards EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C) -25 to 85
Switching Element Normally open contact (NO)
Switching Principle Slow action
Terminal Type Connector
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Wire Cross-Section 13 AWG
Working Principle Optoelectronic
