Housing Material	Glass-fibre, Reinforced Thermoplastic
Installation Conditions	Not Flush
Direction of Motion	Head-on to the Active Surface
Maximum Storage Temperature (°C)	70
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
Brand	SCHMERSAL
Recommended Safety Switchgear	SRB-E-301ST
Recommended Actuator	BPS 250
Maximum Ambient Temperature (°C)	70
Wire Cross Section (mm²)	0.25mm² (Diameter)
Actuating Element	Magnet
Maximum Switching Capacity (W)	0.24
Maximum Switching Current (A)	0.01
Maximum Switching Frequency (Hz)	5
No. of Cables	4
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	1
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 150Hz, Amplitude 0.35mm
Termination	Cable
Cable Length (m)	6
Sensor Length (mm)	13
Sensor Width (mm)	33
Sensor Height (mm)	25
Degree of Protection	IP67
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1

Presence Sensing Safety Devices

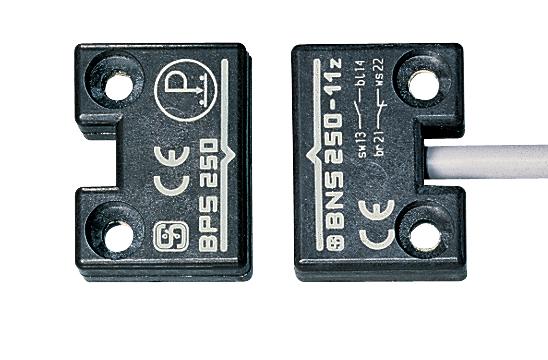

SCHMERSAL BNS 250-11ZG 6.0MMAGNETIC SAFETY SENSOR 101149419
