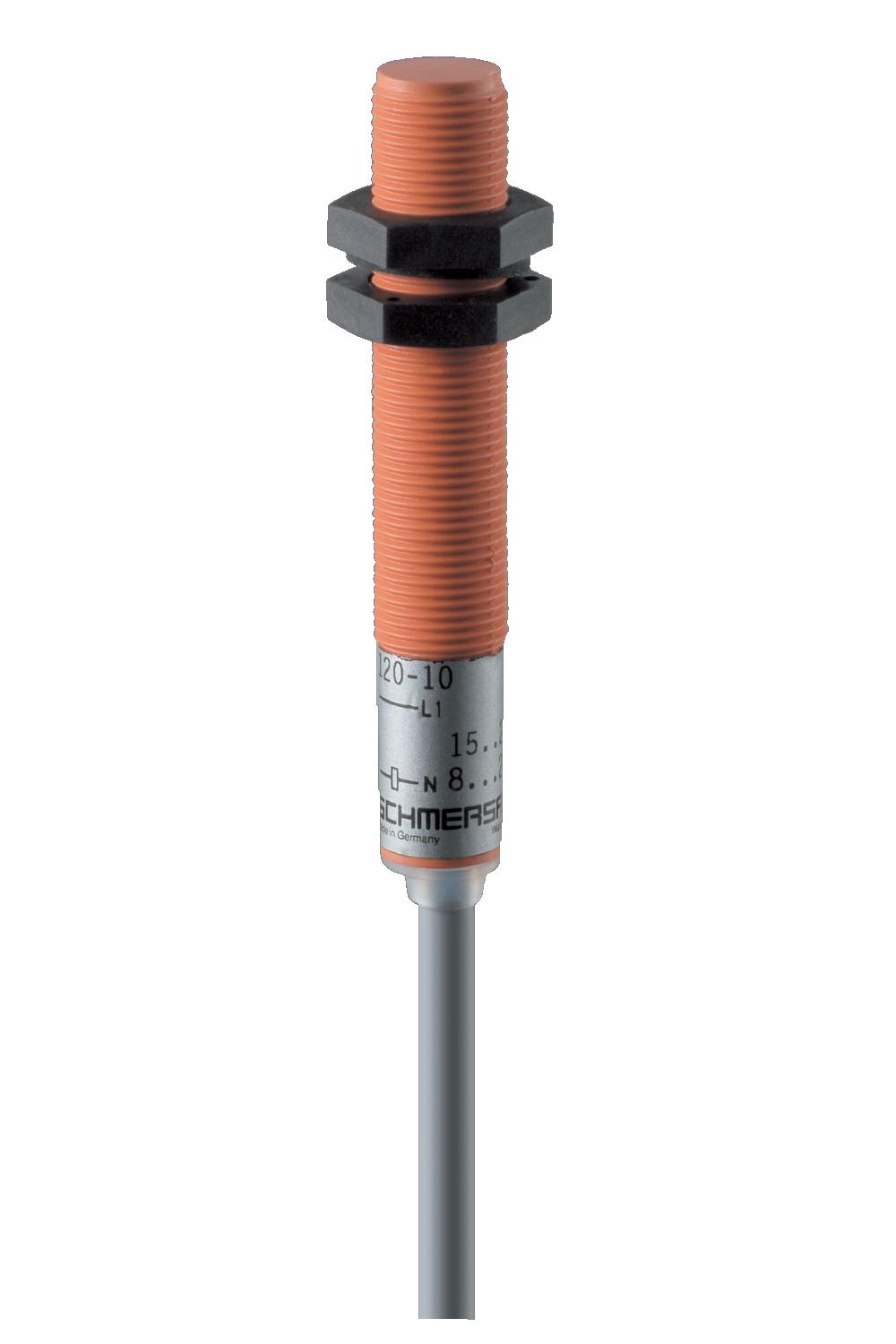

SCHMERSAL IFL4-120-10 INDUCTIVE PROXIMITY SWITCH 101141523

Product Code: 101141523

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precise positioning tasks. This AC 2-wire cylindrical sensor features a reliable 4 mm sensing distance and is equipped with a durable 2-meter H03VV-F cable. Its M12 ISO thread ensures easy integration into various applications. The switch operates with a normally open contact (NO) configuration and is housed in a sturdy plastic enclosure. Engineered to work within an operating voltage range of 15-250VAC at 200 mA, this proximity switch boasts a switching frequency of 10 Hz. It also provides a digital output of 3.5 V at 0.2 A through its two-wire system, ensuring compatibility with most control interfaces while offering inductive interference protection. Designed to withstand harsh environments, it operates between temperatures of -25°C to 70°C and meets IP67 standards according to EN 60529 for water and dust resistance. Ideal for engineers seeking reliable position sensors, the Schmersal IFL Series offers precision and durability for industrial applications.

Technical Specifications

Actuator Type Magnet
Enclosure Material Glass-fibre, reinforced thermoplastic
Gross Weight (g) 50
Net Weight (g) 30
Wire Cross-Section 13 AWG
Enclosure Coating Material Painted
Maximum Temperature (°C) 70
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series IFL
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-37-12-11
Coding Level According to EN ISO 14119 High
ETIM 7.0 EC002593
ETIM 6.0 EC000223
eCl@ss Number, Version 11.0 27-37-12-10
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1 x 0.75
Mounting Type Threaded
Storage Temperature (°C) -25 to 85
Contact Material Silver
Maximum Actuating Speed (m/s) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 3.5
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 20000000 Operations
Minimum Positive Break Force (N) 15
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 250
Rated Maximum Operational Voltage AC (V) 250
Rated Minimum Operational Voltage AC (V) 15
Rated Short-circuit Current (A) 1000
Switching Element NO contact, NC contact
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Height (mm) 100
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 1.5 A
Sensor Length (mm) 30
Sensor Height (mm) 84
Degree of Protection IP67
Pollution Degree 3
Standards EN IEC 60947-5-3 / BG-GS-ET-14
