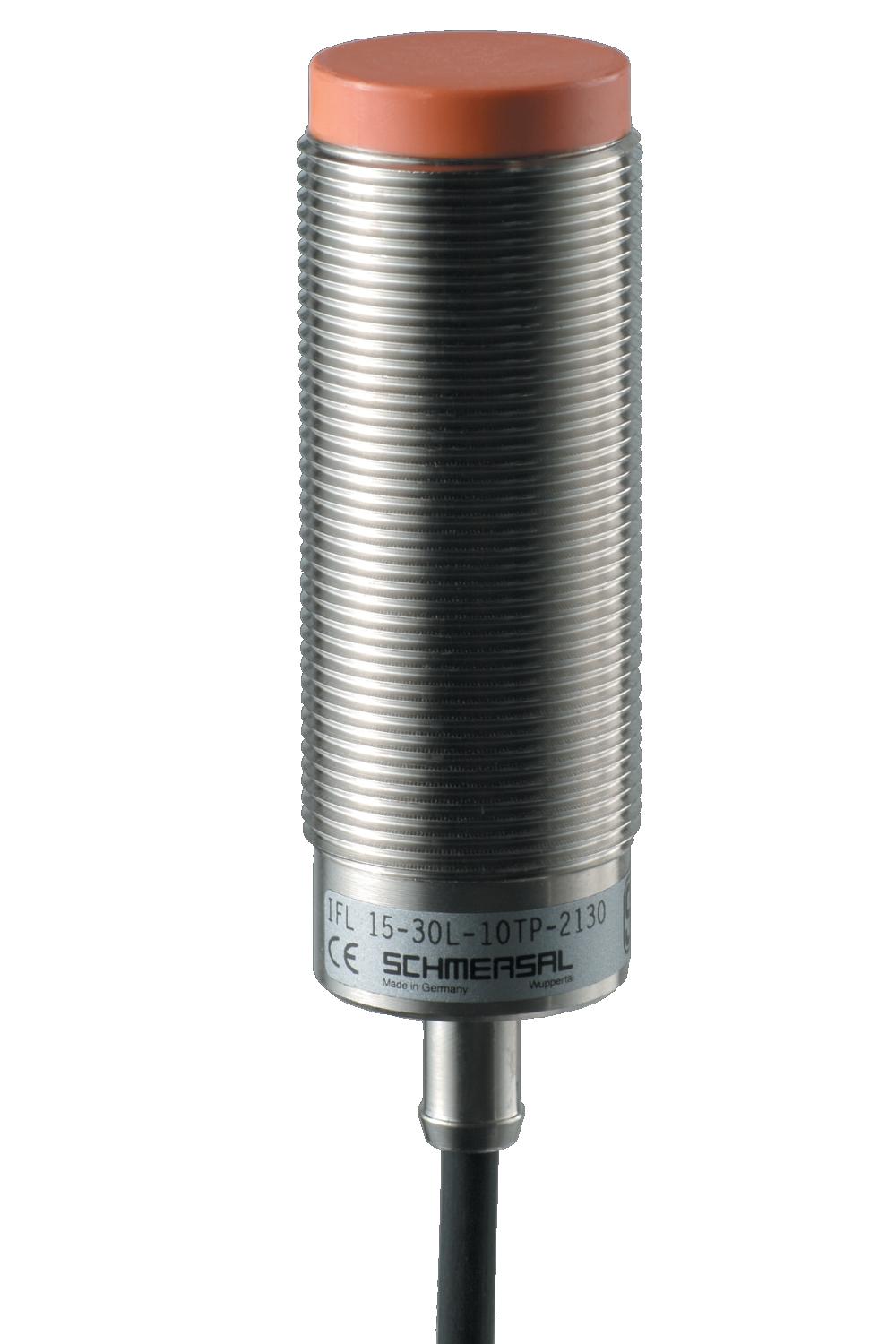

SCHMERSAL IFL15-30L-10TP-2130 INDUCTIVE PROXIMITY SWITCH 101127040

Product Code: 101127040

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precise position detection in industrial environments. This DC 3-wire, long-bodied sensor features an M30 ISO thread cylinder design and offers a reliable 15 mm sensing distance. Equipped with a normally open (NO) contact switching element, it operates within a voltage range of 10 to 30VDC and can handle up to 200 mA of current. The switch boasts a digital output of 1.2 V at 0.2 A, p-type, and ensures operational integrity with inductive interference protection and polarity reversal safeguards. Engineered for high-frequency applications with a switching frequency of 60 Hz, this proximity switch also includes status indication for real-time monitoring. It is built to withstand extreme temperatures ranging from -25°C to 130°C and is rated IP67 according to IEC/EN 60532 standards for dust and water resistance. Ideal for engineers seeking reliable position sensors in demanding conditions, the Schmersal IFL Series enhances machine safety and efficiency with its advanced features and durable construction.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 130
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
