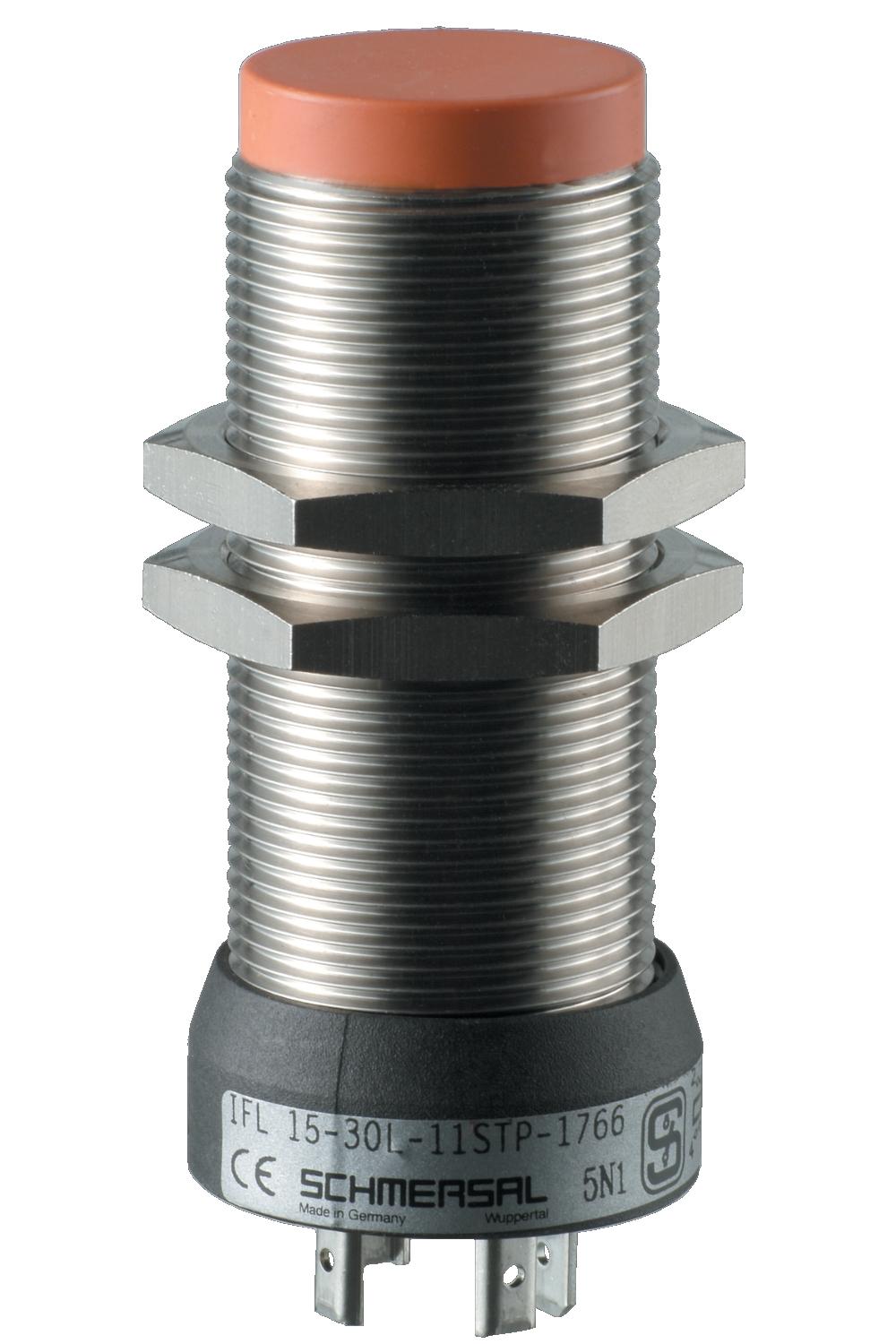

SCHMERSAL IFL 15-30L-11STP-1766 INDUCTIVE PROXIMITY SWITCH 101127030

Product Code: 101127030

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precision position sensing in demanding industrial environments. This DC 4-wire, long-bodied switch features a cylindrical M30 ISO thread for easy installation and offers a reliable 15 mm sensing distance. Equipped with both normally open (NO) and normally closed (NC) antivalent contacts, it ensures versatile integration into various control systems. Operating within a voltage range of 10 to 60VDC and handling up to 200 mA, this proximity switch is engineered for consistent performance with a switching frequency of 50 Hz. The digital output is rated at 1 V and 0.2 A, p-type, ensuring clear signal transmission even in the presence of inductive interference, which the device is well-protected against. Safety features include protection against polarity reversal and surge protection to safeguard your equipment during unexpected voltage spikes. The unit also includes status indication for real-time monitoring and operates effectively across a wide temperature range from 0°C to 110°C. Designed to meet IP67 standards according to IEC/EN 60532, this proximity switch promises durability and resistance to dust and water ingress, making it suitable for use in harsh conditions. Trust Schmersal's expertise in position sensors to deliver reliability and precision where it matters most.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1
Maximum Temperature (°C) 110
Minimum Temperature (°C) 0
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
