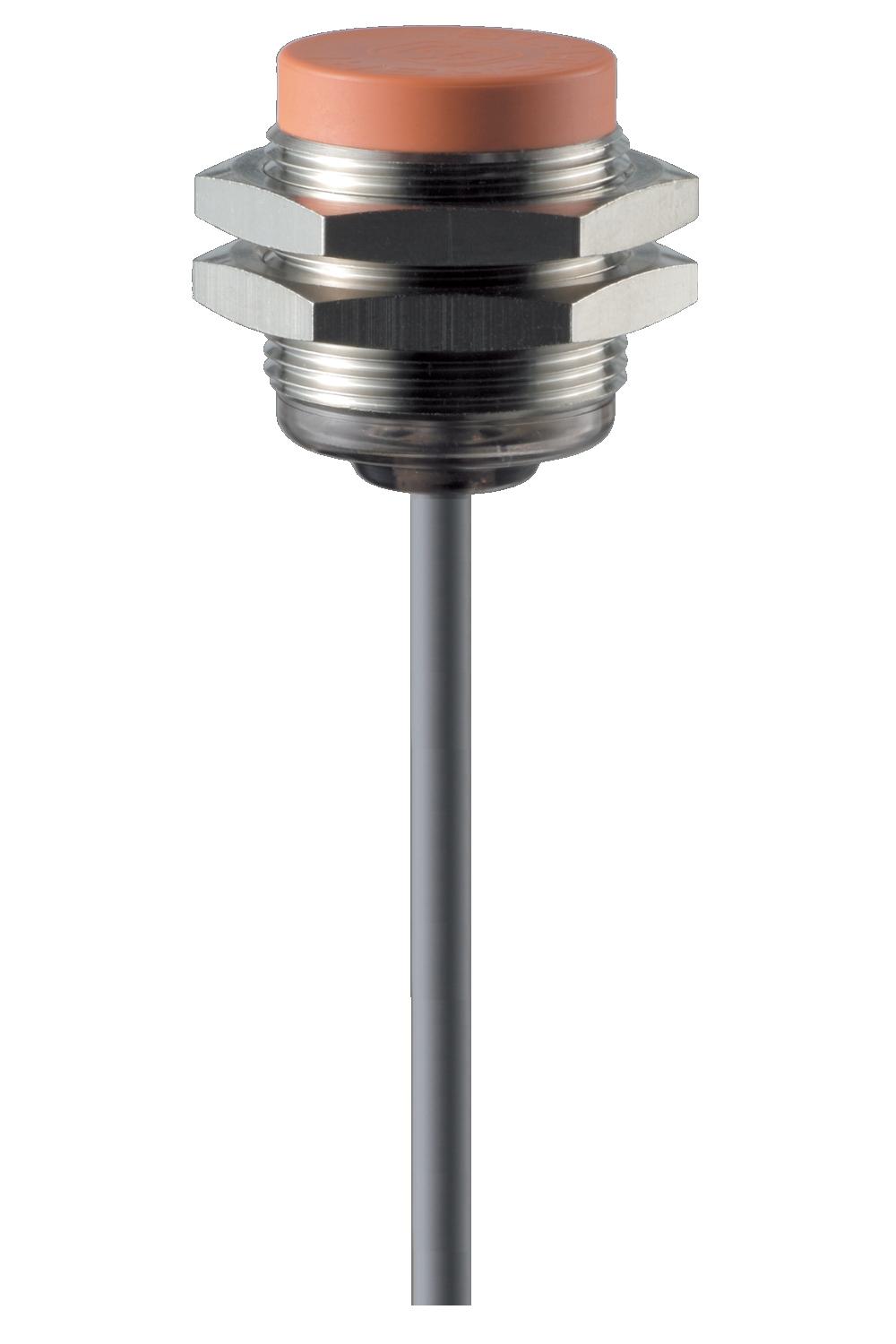

SCHMERSAL IFL15-30M-10P INDUCTIVE PROXIMITY SWITCH 101127038

Product Code: 101127038

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This compact, metal-encased sensor features a 15 mm sensing distance and is equipped with an M30 ISO thread for easy installation. Engineered for DC 4-wire systems, it operates within a voltage range of 10 to 30VDC and supports up to 200 mA load with a switching frequency of 100 Hz. The switch includes a normally open (NO) contact output, delivering digital signals at 1.2 V and 0.2 A in p-type configuration. It's built to withstand inductive interference and offers protection against polarity reversal and electrical surges, ensuring reliable performance in demanding environments. With an operating temperature range from -25°C to 70°C and an IP67 rating according to IEC/EN 60532, this proximity switch promises consistent operation under various conditions. The unit also features status indication for real-time monitoring. Trust in the Schmersal brand for your position sensing needs with this miniature yet powerful inductive proximity switch.

Technical Specifications

Actuator Type Magnet
Enclosure Material Glass-fibre, reinforced thermoplastic
Gross Weight (g) 50
Net Weight (g) 25
Installation Conditions Not flush
Wire Cross-Section 0.25 mm
Enclosure Coating Material Painted
Maximum Temperature (°C) 70
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series IFL
Working Principle Mechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-01-01
Coding Level According to EN ISO 14119 High
ETIM 7.0 EC001260
ETIM 6.0 EC002714
eCl@ss Number, Version 11.0 27-27-26-03
Protection Class of Operating Resource 2
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.34
Mounting Type Threaded
Storage Temperature (°C) -25 to 70
Contact Material Silver
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 1.2
Minimum Actuating Speed (mm/min) 4122
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 40
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Nominal Output Current (A) 0.2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 250
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element 1 NO contact, 1 NC contacts
Switching Principle Slow action
Terminal Type Connector
Height (mm) 100
Utilisation Category DC-13 | AC-15
Width (mm) 22.5
Utilisation Category DC-13 0.05 A
Sensor Length (mm) 50
Sensor Height (mm) 89.5
Degree of Protection IP67
Pollution Degree 3
Standards EN IEC 61496-1 / EN IEC 61496-2
