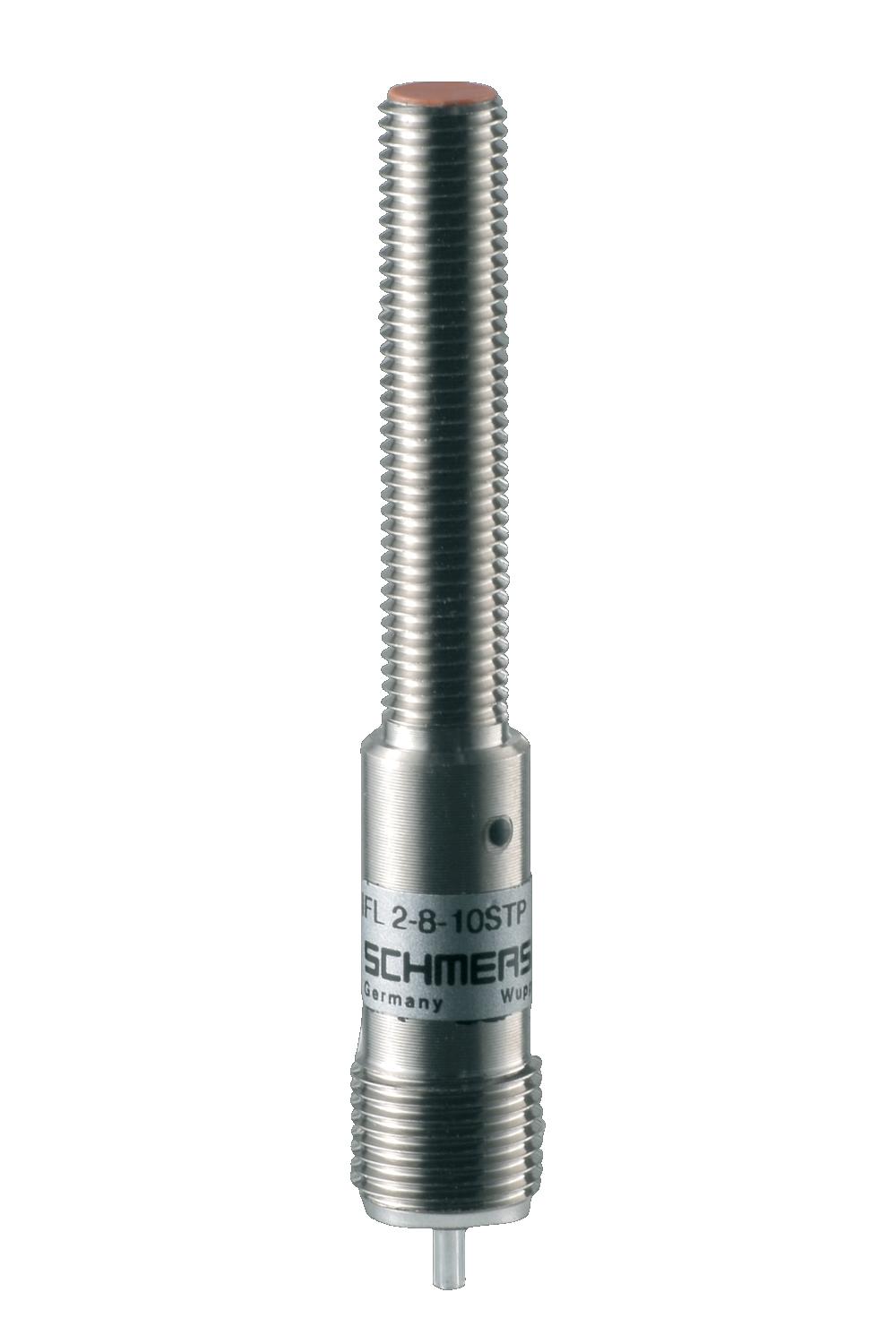

SCHMERSAL IFL2-8-01STP INDUCTIVE PROXIMITY SWITCH 101117680

Product Code: 101117680

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust positioning sensor designed for precision and durability. This DC 3-wire cylindrical switch features a 2 mm sensing distance and is equipped with an M12 connector cable and an M8 ISO thread for seamless integration. The metal-encased unit operates as an opener (NC) with double insulation, ensuring safety and longevity in demanding environments. Engineered to work within a wide operating voltage range of 10 to 300VDC and capable of handling up to 200 mA, this switch boasts a high switching frequency of 3000 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, complemented by inductive interference protection to maintain signal integrity. The device offers clear status indication and is designed to perform reliably between -25°C to 70°C. With an IP67 rating according to IEC/EN 60530 standards, it promises resilience against dust and water ingress. Ideal for engineers seeking precise position sensors in industrial settings, the Schmersal IFL Series stands out for its accuracy and build quality.

Technical Specifications

Brand SCHMERSAL
back2archive 1
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
