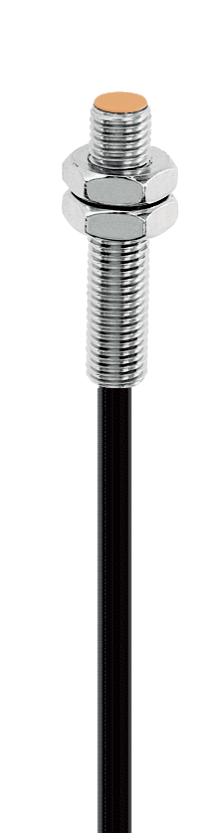

SCHMERSAL IFL3B-8M-10P INDUCTIVE PROXIMITY SWITCH 101110822

Product Code: 101110822

Explore the Schmersal IFL Series Inductive Proximity Switch, a compact and robust sensor designed for precise positioning tasks. This DC 3-wire, metal-encased sensor features a miniature body with an M8 ISO thread cylinder design, ensuring easy integration into tight spaces. With a reliable 3 mm sensing distance and NO contact switching element, it operates within a voltage range of 10 to 30VDC and can handle up to 200 mA of current. The switch boasts a high switching frequency of 1500 Hz and offers a digital output of 1.2 V at 0.2 A, p-type. Engineered for durability, it includes inductive interference protection, polarity reversal protection, surge protection, and is rated IP67 against dust and water ingress as per IEC/EN 60532 standards. It functions optimally across temperatures ranging from -25°C to 70°C and provides clear status indication for operational monitoring. Ideal for various industrial applications requiring precision and resilience, the Schmersal IFL proximity switch is an essential component for your automation needs.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
