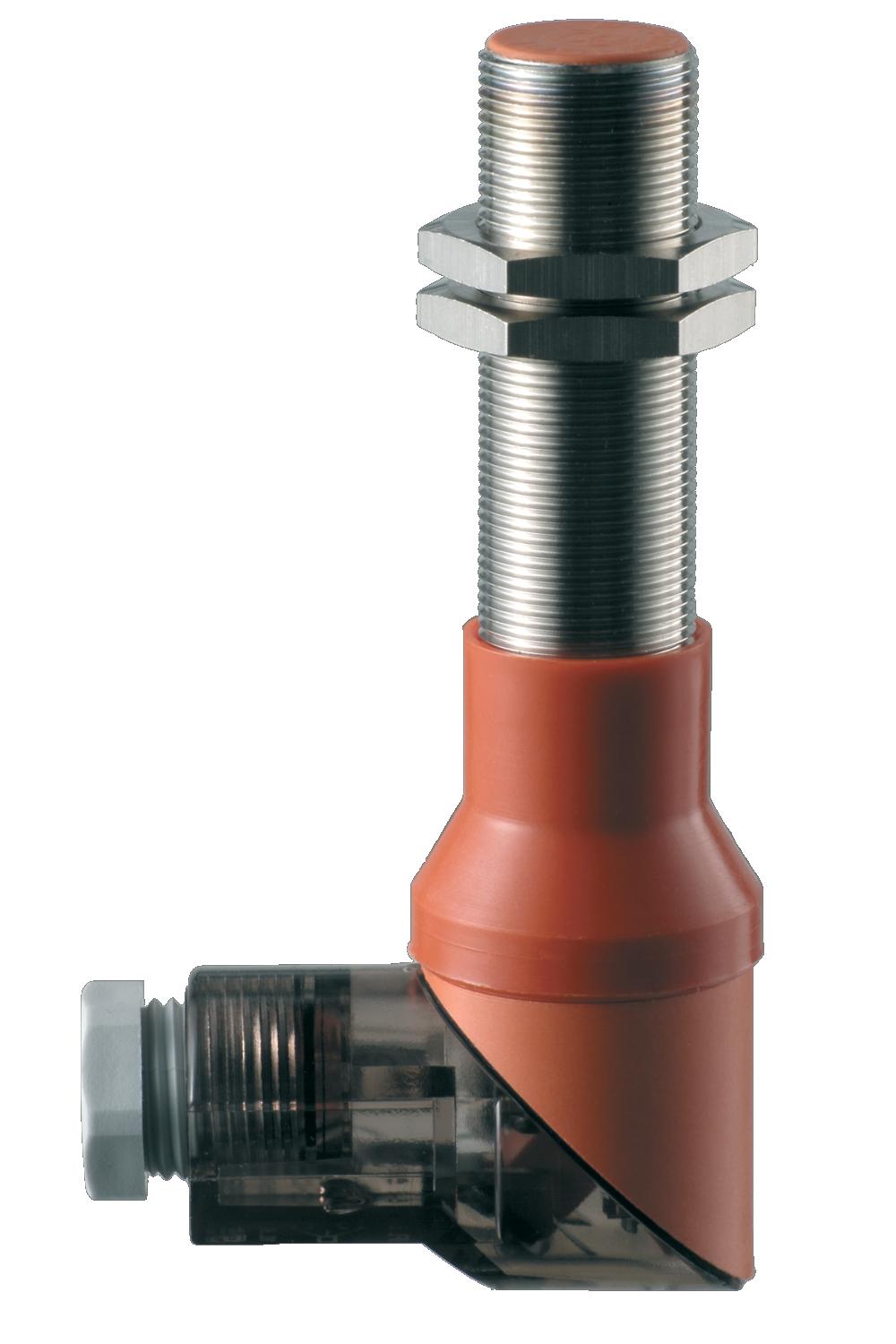

SCHMERSAL IFL5-18L-10/01P INDUCTIVE PROXIMITY SWITCH 101139949

Product Code: 101139949

The Schmersal IFL Series inductive proximity switch is a robust sensor designed for precision position detection in industrial environments. This DC 3-wire, long-bodied cylinder with an M18 ISO thread offers a reliable 5 mm sensing distance and is equipped with both normally open (NO) and normally closed (NC) contacts to suit various applications. The metal enclosure ensures durability, while the screw connection provides secure wiring. Operating within a voltage range of 10-60VDC and capable of handling up to 400 mA, this switch boasts a high switching frequency of 500 Hz. Its digital output is rated at 1.5 V and 0.4 A, p-type, ensuring quick and efficient signal processing. Safety features include inductive interference protection, polarity reversal protection, surge protection, and a status indication for monitoring operational status. Engineered to perform reliably between -25°C to 70°C and certified with an IP67 rating according to IEC/EN 60532 standards, this proximity switch promises resilience against harsh conditions. Ideal for engineers seeking precise and dependable position sensors, the Schmersal IFL Series stands out as a top choice for maintaining seamless operations across various industrial applications.

Technical Specifications

Brand SCHMERSAL
back2archive 1
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.5
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.4
Series IFL
