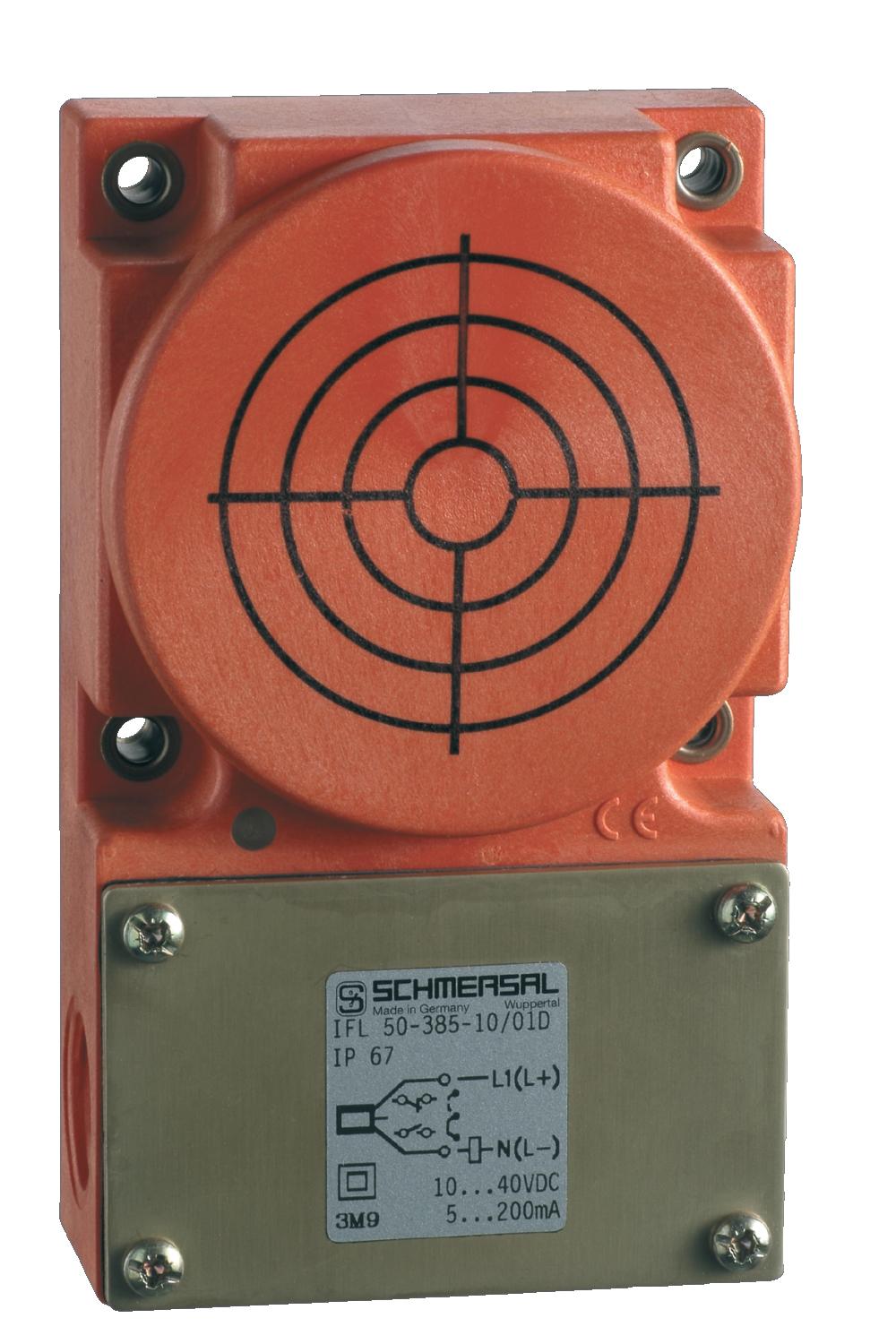

SCHMERSAL IFL 70-385-11PINDUCTIVE PROXIMITY SWITCH 101116724

Product Code: 101116724

Technical Specifications

Housing Material Plastic
Installation Conditions Not Flush
Minimum Ambient Temperature (°C) -25
Brand SCHMERSAL
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2 x 1.5
Current for Voltage Drop (A) 0.4
Maximum Operational Voltage (V) 60
Maximum Voltage Drop (V) 1.5
Minimum Operational Voltage (V) 10
No. of Cables 4
Rated Operational Current (mA) 400
Switching Element NO Contact and NC Contact (Antivalent)
Switching Frequency (Hz) 25
Termination Screw Terminals M20 x 1.5
Sensor Length (mm) 40
Sensor Width (mm) 80
Sensor Height (mm) 135
Degree of Protection IP67
Standards and Approvals EN IEC 60947-5-2
