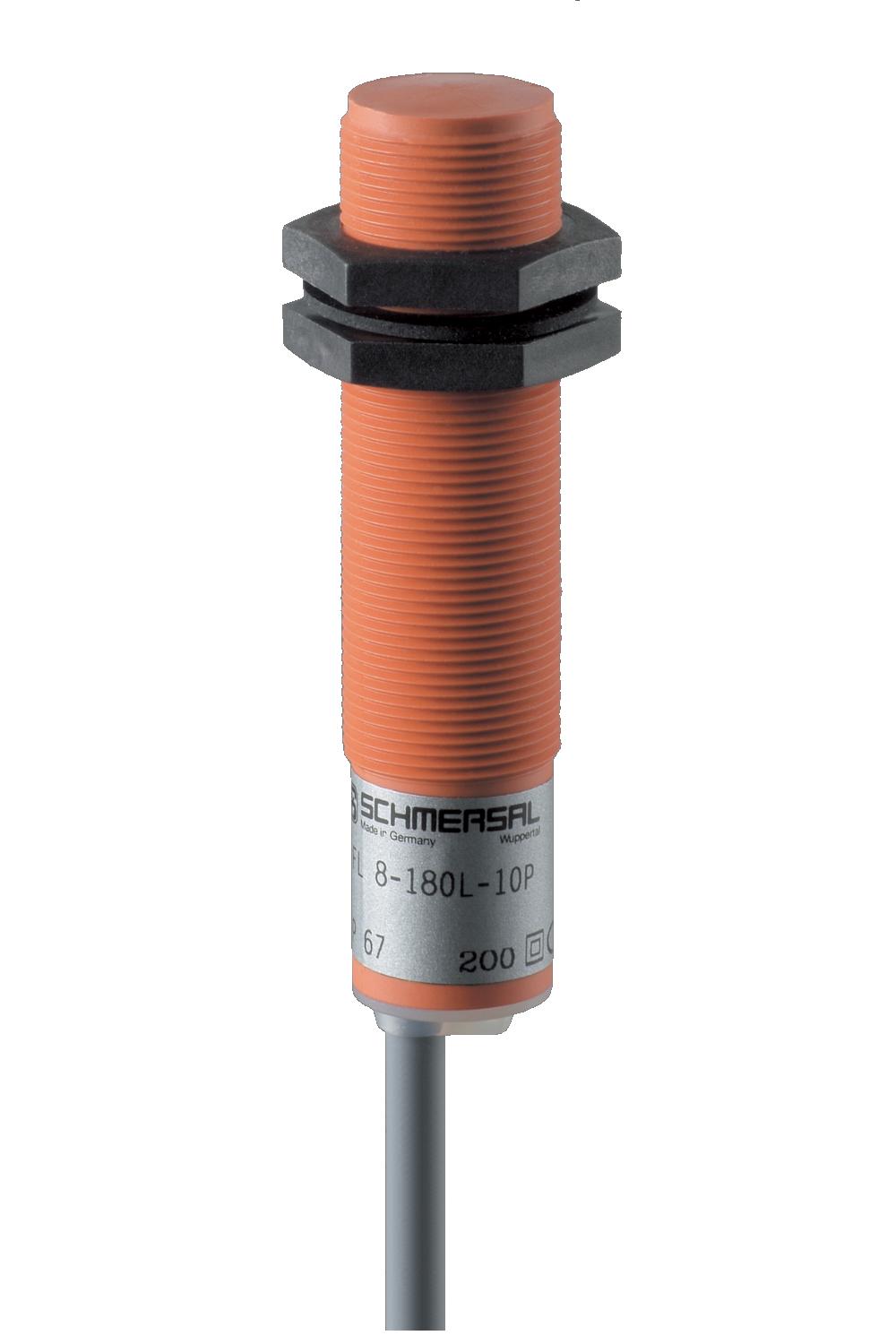

SCHMERSAL IFL 8-180L-10N INDUCTIVE PROXIMITY SWITCH 101124144

Product Code: 101124144

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This DC 3-wire, long-bodied cylinder switch features an M18 ISO thread for easy installation. With a reliable sensing distance of 8mm and both NO and NC contacts, it ensures versatile operation in various applications. The thermoplastic enclosure provides double insulation, enhancing safety and longevity. Operating within a voltage range of 10-30VDC and supporting up to 200 mA, this switch is engineered for consistent performance with a switching frequency of 400 Hz. Its digital output is rated at 1.2 V and 0.2 A, n-type, ensuring clear signal transmission even in environments with inductive interference. Equipped with protection against polarity reversal and surges, the unit maintains functionality under electrical stress. It operates effectively between -25°C to 70°C temperatures and boasts an IP67 rating according to IEC/EN 60532 standards for water and dust resistance. The Schmersal proximity switch also includes status indication for real-time monitoring, making it an ideal choice for engineers seeking a reliable position sensor solution in demanding conditions.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
