Position Switches & Sensors


Product Code: 101123655

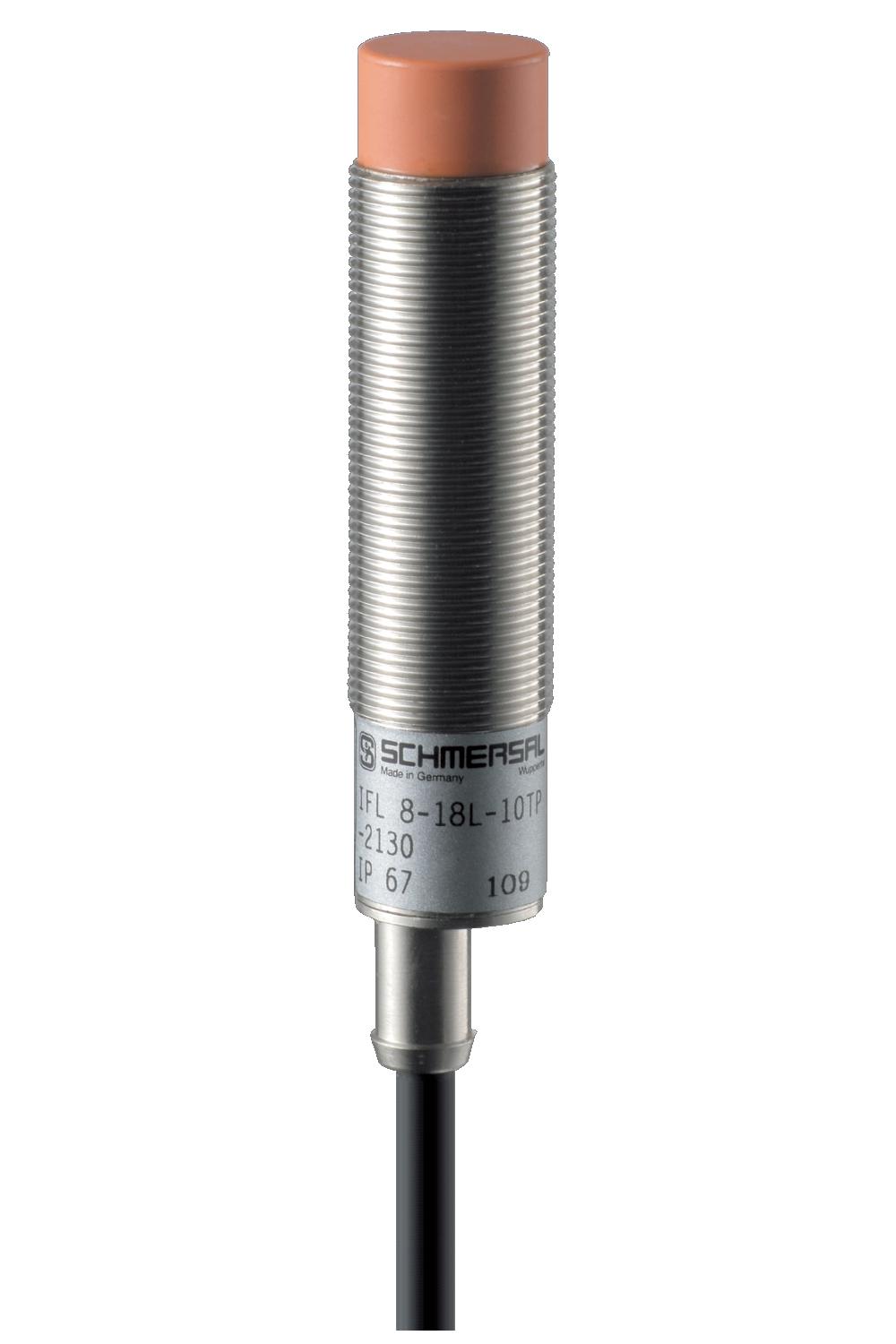

Explore the Schmersal IFL Series inductive proximity switch, a robust sensor designed for precision and durability. This DC 3-wire, long-bodied cylinder with an M18 ISO thread offers a reliable 8 mm sensing distance. Crafted with a metal enclosure, it ensures operational integrity within a voltage range of 10-30VDC and supports up to 200 mA current load. The NO contact switching element is complemented by a high switching frequency of 350 Hz. With digital output specifications of 1.2 V and 0.2 A p-type, this sensor includes inductive interference protection and safeguards against polarity reversal. Engineered for challenging environments, it operates seamlessly between -25°C to 130°C and boasts an IP67 rating according to IEC/EN 60532 standards, ensuring protection from dust and water ingress. Status indication provides real-time operational feedback for streamlined monitoring. Trust in the reliability of Schmersal's position sensors to enhance your automation processes with precision and safety.

Technical Specifications

Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 130
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
