Actuator Type	Roller lever
Enclosure Material	Grey Cast Iron, Galvanised
Contact Opening (mm)	2 x 2.5
Brand	SCHMERSAL
Ambient Temperature Range (°C)	-40 °C to +200 °C
Actuating Angle	30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Maximum Actuating Speed (m/s)	3
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	250
Minimum Actuating Speed (mm/min)	1
Minimum Mechanical Life	5,000,000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	250
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	16
Sensor Length (mm)	63
Sensor Width (mm)	106
Sensor Height (mm)	192
Degree of Protection	IP65

Position Switches & Sensors

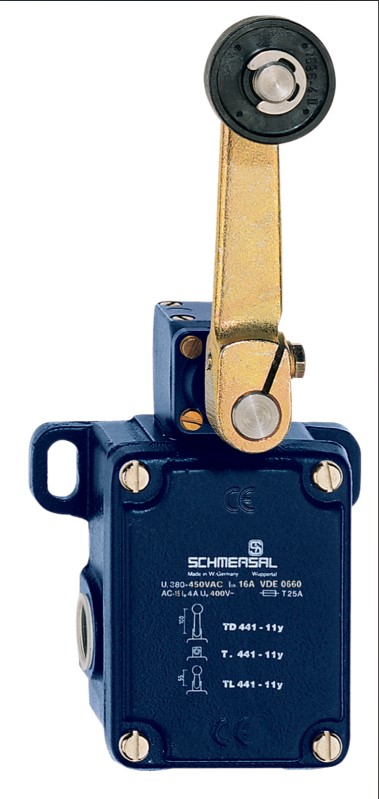

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TD 441-11Y-T-1276-1 101089159
