Contact Opening (mm)	2 x 2.5
Maximum Actuating Speed (m/s)	3
Minimum Actuating Speed (mm/min)	1
Roller Material	Plastic
Sensor Height (mm)	192
Sensor Length (mm)	63
Sensor Width (mm)	106
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Thermal Test Current (A)	16
Brand	SCHMERSAL
Actuator Type	Roller lever
Ambient Temperature Range (°C)	-40 °C to + 200 °C
Contact Material	Gold-plated Silver (AgNi 15 + Au 0,3µm)
Degree of Protection	IP65
Enclosure Material	Grey Cast Iron, Galvanised
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	400
Minimum Mechanical Life	10,000,000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Weight (kg)	1.76

Position Switches & Sensors

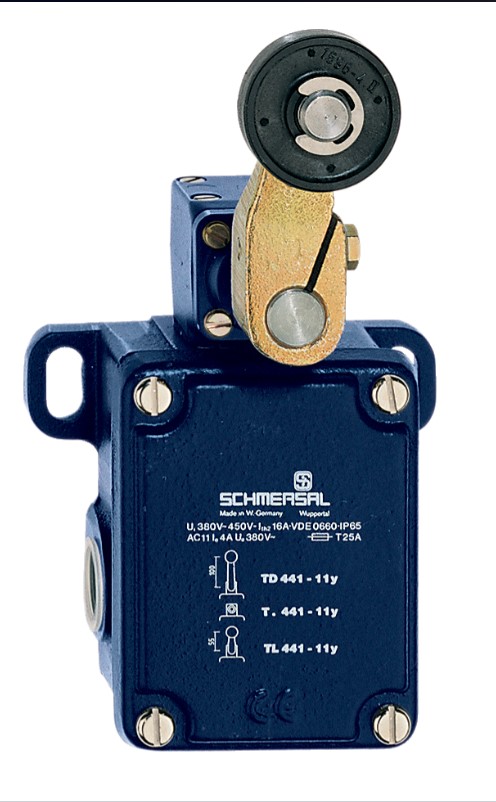

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TL 441-11Y-1276-2 101086689
