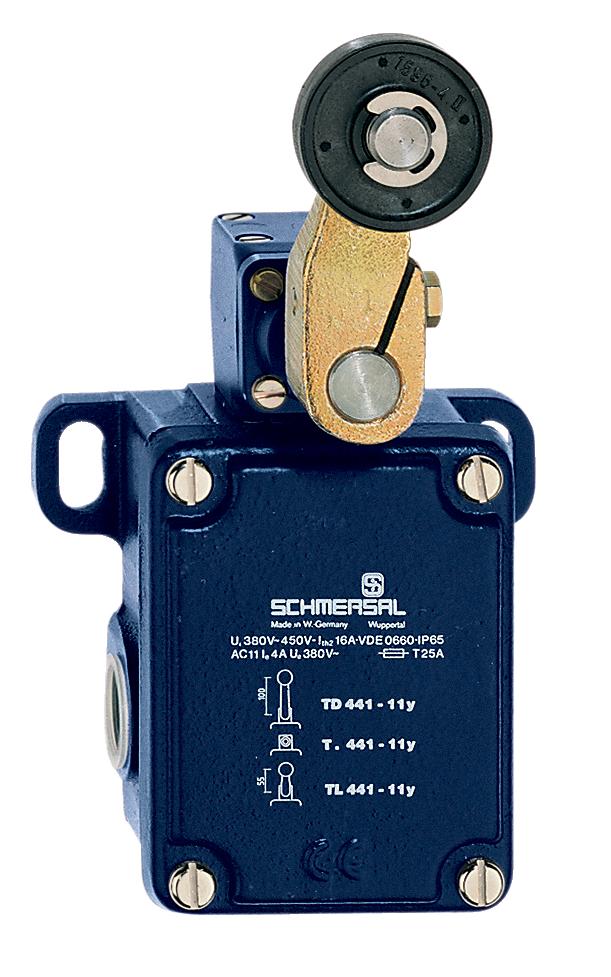

SCHMERSAL TL 441-11Y-T-1276-2/ -1801POSITION SWITCH 101150792
Zoom
SCHMERSAL TL 441-11Y-T-1276-2/ -1801POSITION SWITCH 101150792
Product Code: 101150792
Technical Specifications
Actuating Angle
30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element
Roller Lever
Castor Diameter (mm)
36
Castor Material
Brass
Castor Width (mm)
9
Contact Opening (mm)
2 x 6
Maximum Actuating Speed (m/s)
3
Maximum Fuse Rating
16 A gG D-fuse
Minimum Actuating Speed (mm/min)
1
Minimum Ambient Temperature (°C)
-40
Rated Operational Current AC-15 (A)
4
Sensor Height (mm)
192
Sensor Length (mm)
63
Sensor Width (mm)
106
Switching Element
NO Contact, NC Contact
Switching Principle
Slow Action
Termination
Screw Terminals M20 x 1.5
Thermal Test Current (A)
16
Utilisation Category
AC-15
Brand
SCHMERSAL
Contact Material
Gold-plated Silver (AgNi 15 + Au 0.3µm)
Degree of Protection
IP65
Enclosure Coating Material
Painted
Housing Material
Grey Cast Iron, Galvanised
Maximum Ambient Temperature (°C)
200
Maximum Cable Cross Section (mm²)
2.5
Minimum Cable Cross Section (mm²)
1.5
Minimum Mechanical Life
10000000 Operations
No. of Normally-closed Contacts
1
No. of Normally-open Contacts
1
Rated Impulse Withstand Voltage (kV)
6
Standards and Approvals
EN IEC 60947-5-1
