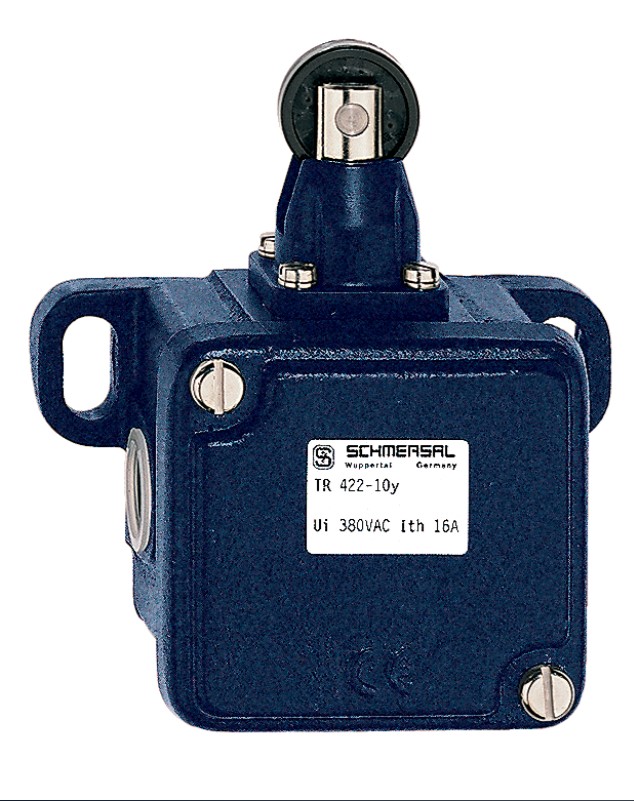

SCHMERSAL TR 422-10Y-RMS-1314 POSITION SWITCH 101083373

Product Code: 101083373

Technical Specifications

Actuator Type Roller Plunger
Enclosure Material Grey Cast Iron, Galvanised
Brand SCHMERSAL
Ambient Temperature Range (°C) -30 °C to + 90 °C
Contact Material Silver
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 400
Minimum Mechanical Life 10,000,000 Operations
Rated Insulation Voltage (V) 400
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Weight (kg) 0.1
Sensor Length (mm) 63
Sensor Width (mm) 106
Sensor Height (mm) 117
Degree of Protection IP65
