Sensor Height (mm)	103.5
Sensor Length (mm)	38
Sensor Width (mm)	40.5
Switching Frequency	5000 /h
Switching Principle	Slow Action
Thermal Test Current (A)	10
Brand	SCHMERSAL
Ambient Temperature Range (°C)	-30 °C to + 80 °C
Contact Material	Silver
Contacts	1 NO Contact 1 NC Contact
Degree of Protection	IP65, IP67
Enclosure Material	Light Alloy Die-casting
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	230
Minimum Mechanical Life	30,000,000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500

Position Switches & Sensors

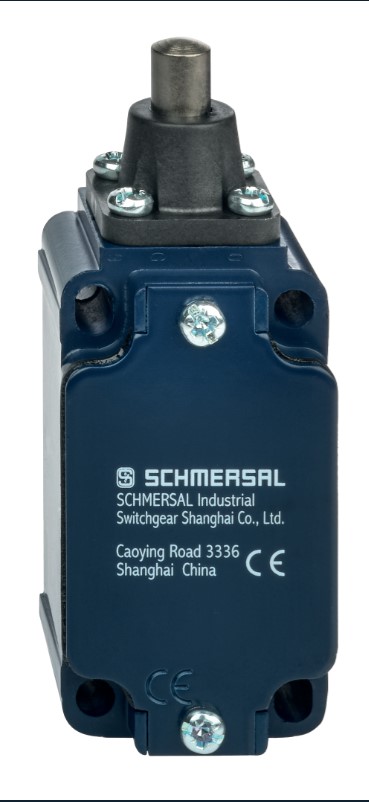

SCHMERSAL TS 335-11Z-1992 POSITION SWITCH 101104550
