Actuator Type	Plunger
Enclosure Material	Grey Cast Iron, Galvanised
Brand	SCHMERSAL
Ambient Temperature Range (°C)	-30 °C to +90 °C
Contact Material	Gold-plated Silver (AgNi 15 + Au 0,3µm)
Maximum Actuating Speed (m/s)	1
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	400
Minimum Actuating Speed (mm/min)	1
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	63
Sensor Width (mm)	106
Sensor Height (mm)	125
Degree of Protection	IP65

Position Switches & Sensors

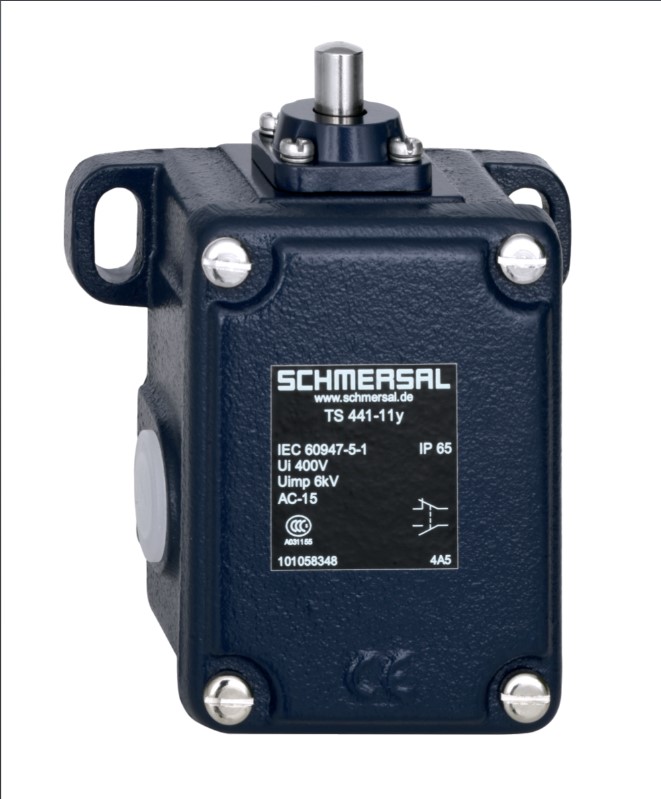

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TS 441-11Y-T-1276-2 101095779
