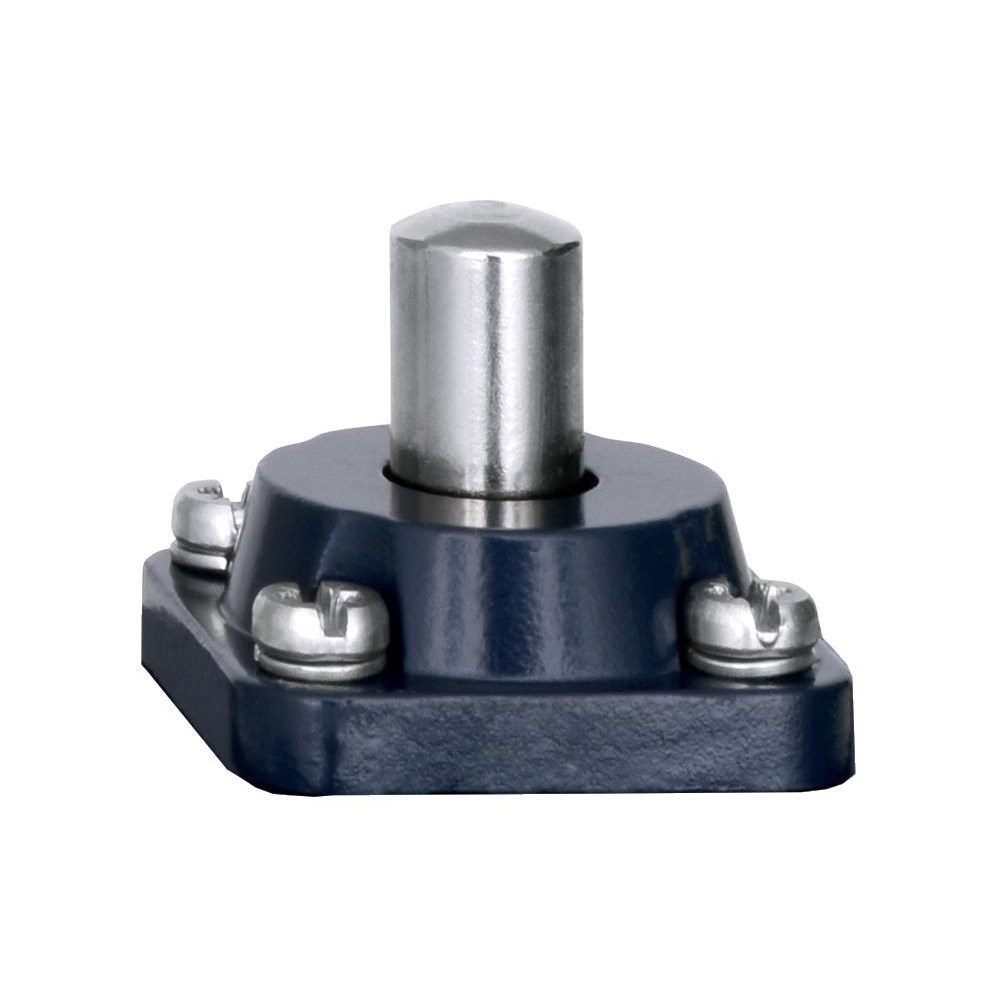

SCHMERSAL TS 452-12YMEDIUM-DUTY POSITION SWITCH 101058419

Product Code: 101058419

Technical Specifications

Actuating Angle 20°
Actuating Element Plunger
Contact Opening (mm) 2 x 6
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Plunger Diameter (mm) 10
Rated Operational Current AC-15 (A) 4
Rated Operational Voltage AC-15 (V) 400V AC
Sensor Height (mm) 153
Sensor Length (mm) 64
Sensor Width (mm) 118
Switching Element NO Contact, NC Contact
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category AC-15
Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 1
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Standards and Approvals EN IEC 60947-5-1
