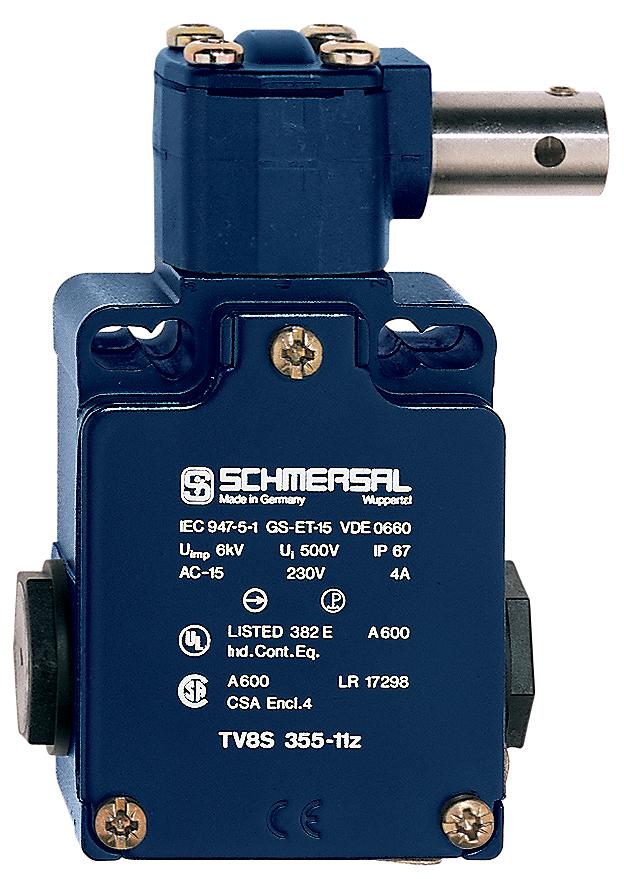

SCHMERSAL TV8S355-11Z HINGE SAFETY SWITCH 101117209

Product Code: 101117209

Enhance your machine safety with the Schmersal TV8S Series Safety Switch. This robust hinge safety switch features a durable metal enclosure and offers three M20 x 1.5 cable entries for secure connections. Designed with both an auxiliary contact and a safety contact, it ensures reliable operation in critical applications. The actuating element is uniquely designed, complemented by an 8mm mounting hole for the shaft. Its switching elements include a normally open (NO) contact and a normally closed (NC) contact, capable of handling a thermal test current of 10A. Optimized for performance, it operates efficiently with AC-15 utilization at 230 VAC up to 4A and DC-13 utilization at 24 VDC also up to 4A. Trust in Schmersal's commitment to machine safety with this precision-engineered safety switch from their TV8S series.

Technical Specifications

Brand SCHMERSAL
back2archive 1
Degree of Protection IP65
Maximum Temperature (°C) 65
Minimum Temperature (°C) -25
Series TV8S
