Housing Material	Light Alloy Die-casting
Enclosure Coating Material	Painted
Rod Material	Epoxy Resin
Contact Opening (mm)	2 x 1.5
Minimum Ambient Temperature (°C)	-20
Brand	SCHMERSAL
Maximum Ambient Temperature (°C)	60
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Actuating Angle	30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element	Rod Lever
Contact Material	Silver
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	16 A gG D-fuse
Minimum Actuating Speed (mm/min)	1
Minimum Mechanical Life	10000000 Operations
No. of Normally-closed Contacts	2
Rated Insulation Voltage (V)	500
Switching Element	Opener (NC)
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	16
Sensor Length (mm)	50
Sensor Width (mm)	62
Sensor Height (mm)	280
Rod Diameter (mm)	6
Degree of Protection	IP65
Standards and Approvals	EN IEC 60947-5-1

Position Switches & Sensors

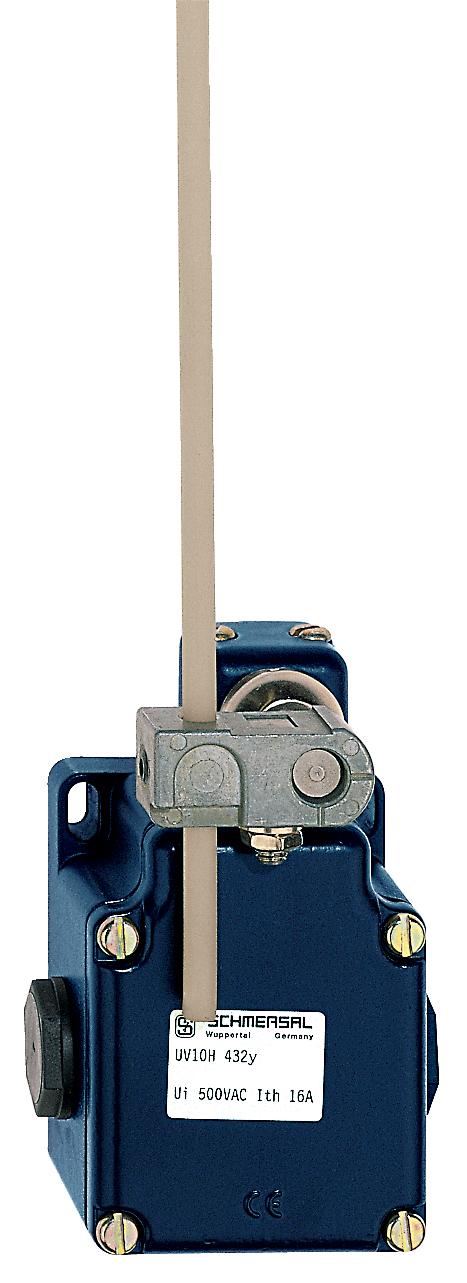

SCHMERSAL UV10H 432YPOSITION SWITCH 101060554
