Product Code: SSP1-32-50-275-A

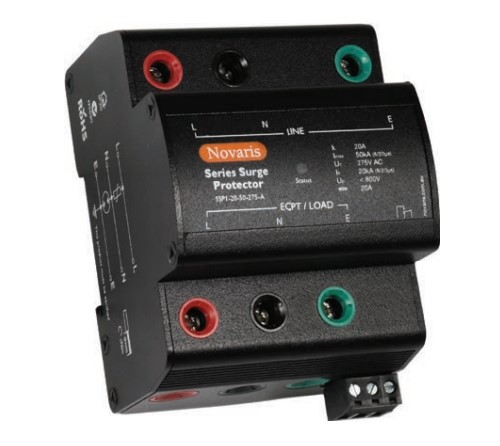

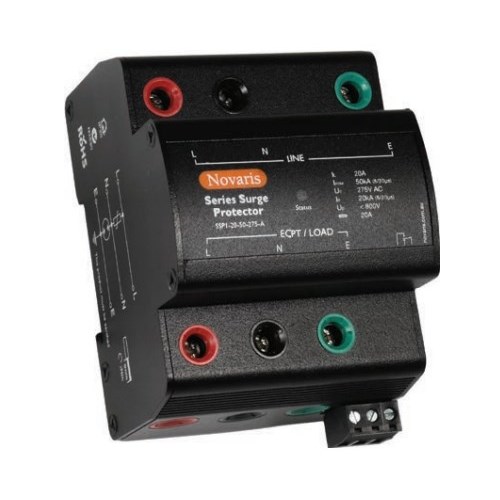

The Series Surge Protector is a single-phase device designed for 230 VAC nominal voltage. It has a maximum continuous operating voltage of 275VAC. The protector offers maximum discharge currents of 50kA (L-N) and 60kA (N-PE) at 8/20ms, with nominal discharge currents of 20kA (L-N) and 50kA (N-PE) at 8/20us. It can handle a maximum load current of 32A and provides a voltage protection level of <1300V (L-N) at the nominal discharge current. The protector features series connection active alarm, all mode protection, LED status per phase, and DIN rail mounting.

Brand	NOVARIS
Series	SSP1
Lightning Impulse Current (10/350 µs) - Iimp (kA)	6.25 (L-N), 15 (N-PE)
Mounting Type	DIN rail
Operational Temperature Range (°C)	-40 to 70
Alarm Contact	Yes
Connection Type	Series
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA)	50 (L-N) 60 (N-PE)
Maximum Load Current - I? (A)	32
No. of Phases	1
No. of Poles	1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	20 (L-N), 50 (N-PE)
Nominal Voltage AC (V)	230
Dimensions (mm)	95H x 72W x 69D
Voltage Protection Level - Up (kV)	<1.3 (L-N)
Degree of Protection	IP20
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
