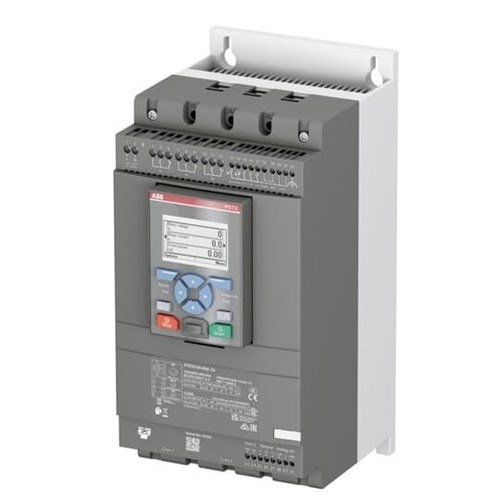

<p>For those in the industrial and commercial sectors seeking a reliable solution for motor control, this product offers a comprehensive suite of features designed to meet demanding technical requirements. With a rated voltage range of 208-690 VAC and current capacity up to 105 A, it accommodates various applications with efficiency. The device operates seamlessly across different frequencies, supporting both 50 Hz and 60 Hz environments.</p><p>Connectivity is robust with support for multiple communication protocols including Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet as well as BACnet-IP and BACnet-MSTP. This versatility ensures integration into diverse systems without hassle.</p><p>Installation is straightforward thanks to its cable clamp terminal type which requires an 8 N-m tightening torque. It supports connecting capacities up to 2.5 sq-mm wires. Despite its powerful capabilities, the unit maintains a compact form factor with dimensions of 150 mm in width, 314 mm in height and a depth of just 198 mm.</p><p>The product&#39;s protection level is rated at IP00 which suits it for controlled environments where additional enclosures are used. Its operational temperature ranges from -25&#176;C to +60&#176;C while ambient conditions can vary between -40&#176;C and +70&#176;C—highlighting its resilience under tough conditions.</p><p>Weighing only 4.7 kg and featuring an appealing green colour finish adds convenience during installation or maintenance checks without sacrificing aesthetic considerations within equipment rooms.</p><p>Rated power options include configurations at 30 kW through to an impressive maximum of 90 kW along with corresponding HP ratings from 30 hp up to100 hp ensuring adaptability across small-scale machinery right through heavy-duty operations requiring high horsepower outputs.</p><p>Functionality includes soft start/stop mechanisms via torque or voltage ramp methods alongside advanced features such as kick start sequence start current limiting capabilities automatic restarts when necessary event logging integrated electronic overload protection among others—all contributing towards extended equipment life cycles reduced downtime periods enhanced safety measures overall performance optimization benefits end users greatly especially where precision control over motors pivotal task completion success rate improvements noted significantly due these built-in functionalities provided standard offerings here</p><p>Analogue output options cater varying signal needs ranging between standard industry levels like0-10 V0-20 mA4-20 mA thereby allowing seamless interfacing external monitoring devices further augmenting system diagnostics feedback loops essential maintaining peak operational status throughout usage lifespan</p><p>With service factor pegged consistently high at100% coupled presence overload fault signal relays embedded within design framework operators assured reliability durability even under strenuous loads prolonged durations Manufacturer Part Number</p>
