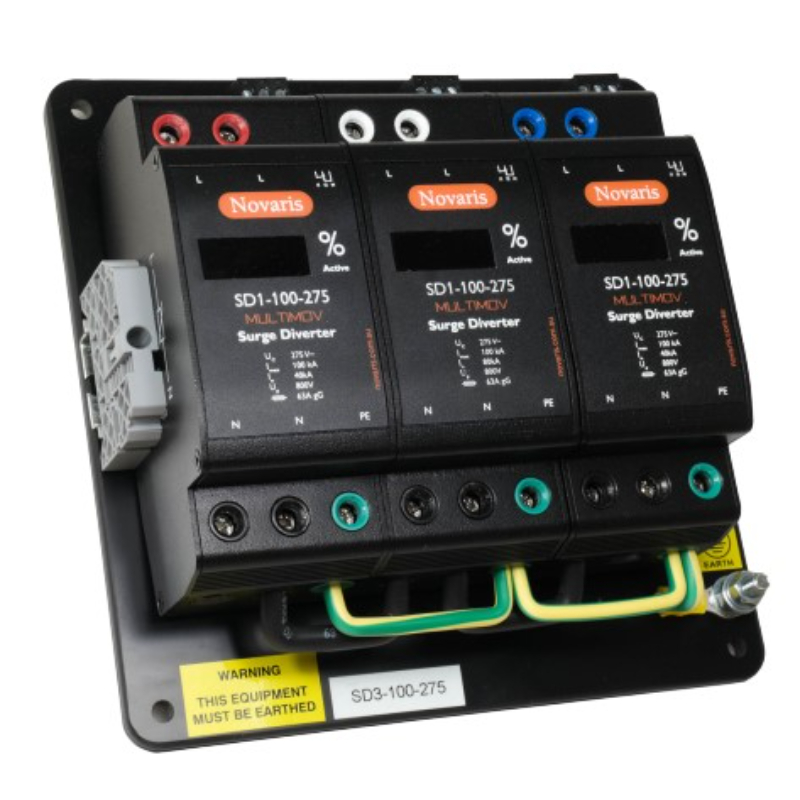

NOVARIS 3-PHASE MOV SURGE DIVERTER, 275VAC, 100KA SD3-100-275

Product Code: SD3-100-275

: The Novaris SD3 MULTIMOV is a high-performance surge diverter designed for three-phase systems to provide comprehensive point of entry protection at main switchboards. It offers all mode protection including N-E, ensuring maximum safety. Its redundant MOV segments ensure long life and exceptional surge handling capacity, while the digital display allows for active monitoring of the device status.

Technical Specifications

Brand NOVARIS
Series SD3
Lightning Impulse Current (10/350 µs) - Iimp (kA) 12.5 (L-N)
Mounting Type Panel
Operational Temperature Range (°C) -40 to 70
Connection Type Shunt
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-N)
No. of Phases 3
No. of Poles 3P+N PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N)
Nominal Voltage AC (V) 230
Dimensions (mm) 200W x 80H x 200L
Weight (kg) 1.8
Voltage Protection Level - Up (kV) <1.5 (L-N)
Degree of Protection IP20
Standards and Approvals IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
