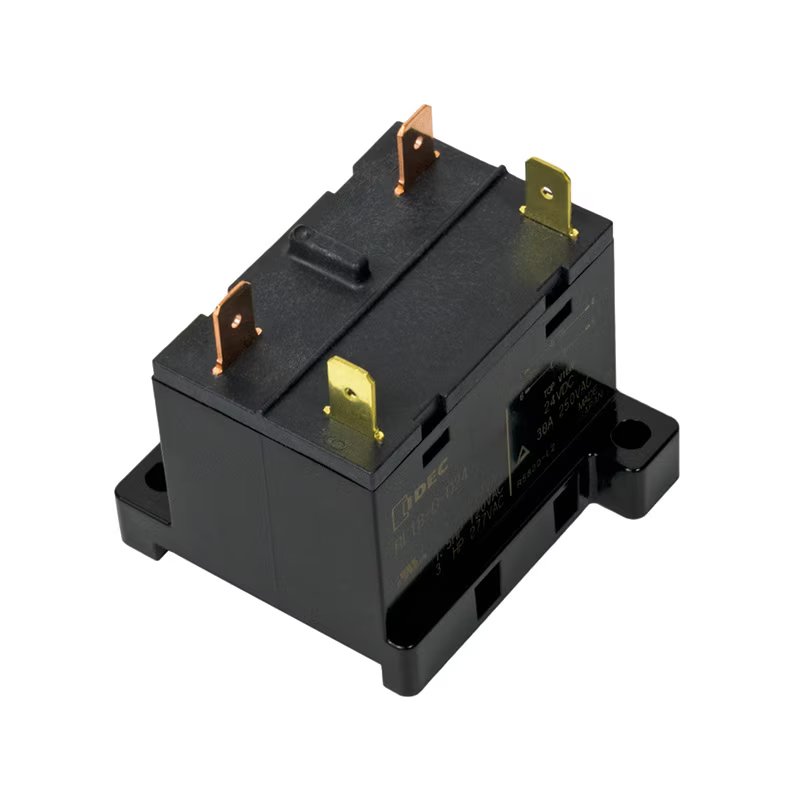

IDEC 1-POLE TAB TERMINAL DIN 24V AC RELAY RL1B-D-A24

Product Code: RL1B-D-A24

The IDEC RL1B-D-A24 is a 1-pole tab terminal DIN relay operating at 24V AC, designed for controlling motor, lighting, and heater loads. It features Double Make contacts for reliable connectivity and performance. This relay is also RoHS compliant, ensuring adherence to environmental standards. Ideal for a variety of industrial applications, it offers a robust solution for power switching needs.

Technical Specifications

Operating Humidity 5 to 85%
Terminal Shape Quick Connect Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Mounting Type DIN Rail Mount with Panel Mount Tabs
Operational Temperature Range (°C) -25 to 55
Coil Voltage AC (V) 24
Contact Material Ag Alloy
Contacts 1X (SPST, Double Make)
Maximum Switching Current (A) 30
Minimum Mechanical Life 1,000,000
No. of Poles 1
Operating Time 30ms Max
Power Consumption (VA) 1.7 - 2.5
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 54W x 50H x 39.5D
Weight (g) 90-135
Degree of Protection IP40
