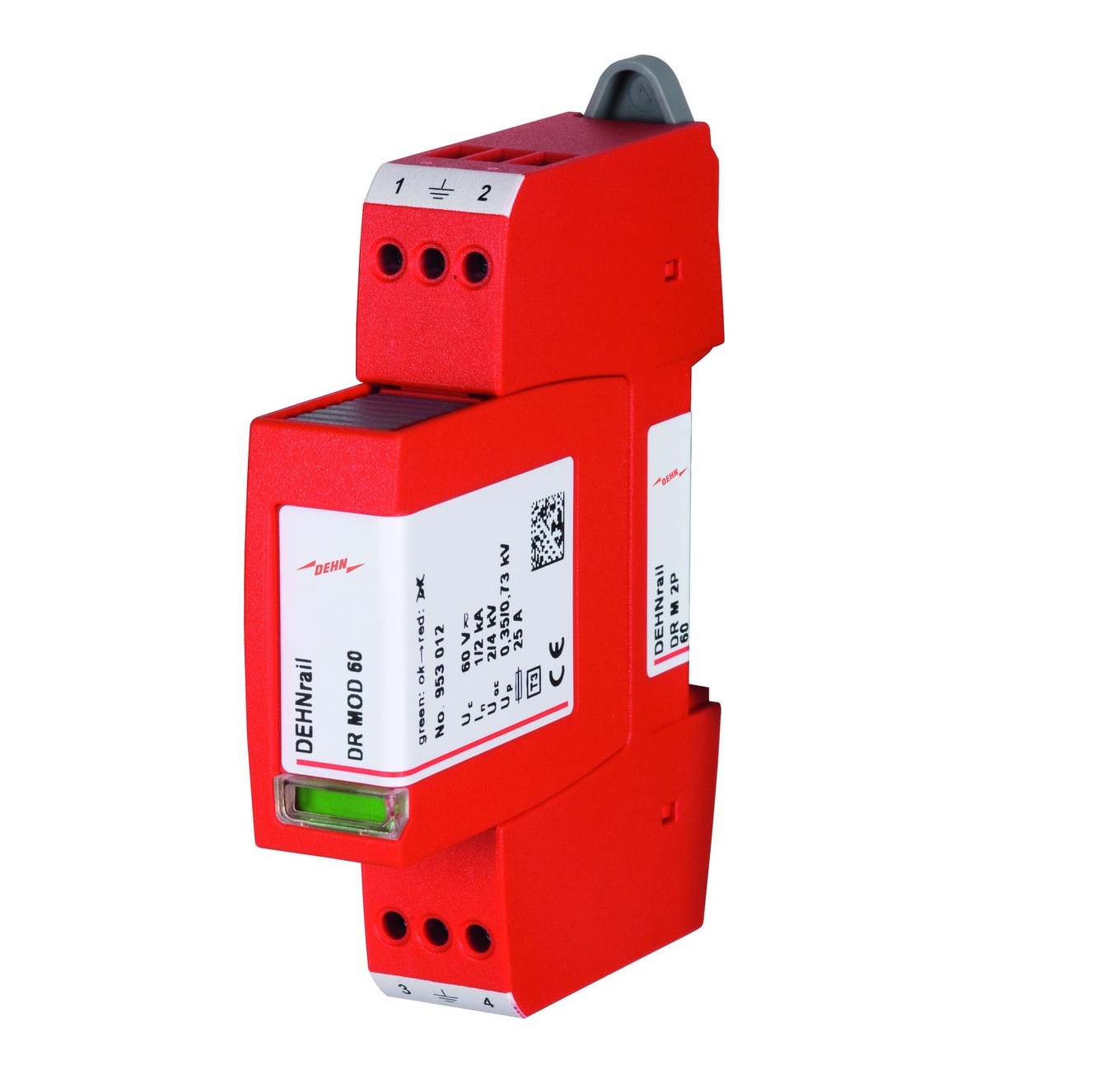

DEHN DEHNRAIL M SURGE ARRESTER DRM2P60

Product Code: DRM2P60

  • Modular and pluggable two-pole Width: 1 module Fault indication Type 3 SPD according to EN 61643-11 Energy-coordinated according to IEC 62305-4
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Article No. 953202
Brand DEHN
Product Type Surge Protection Device
Circuit Type Final Sub Circuit
Maximum Continuous Operating Voltage MCOV AC (V) 60
Maximum Continuous Operating Voltage MCOV DC (V) 60
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 1
Nominal Load Current AC - I? (A) 25
Nominal Voltage AC (V) 48
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 25 (L-N)/≤ 100 (L/N-PE)
Short-Circuit Withstand Capability - Iscc? (kArms) 6
SPD Type Type 3
Dimensions (mm) 0.08W x 0.11L x 0.02D
Total Discharge Current (8/20µs) - Itotal (kA) 2
No. of Modules 1
Weight (kg) 0.09
Degree of Protection IP20

Description

Two-pole DEHNrail modular surge arrester (type 3 according to EN 61643-1) consisting of a base part and plug-in protection module. High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination. For protecting the power supply circuit of industrial electronics equipment against transient surges in switchgear cabinets.
