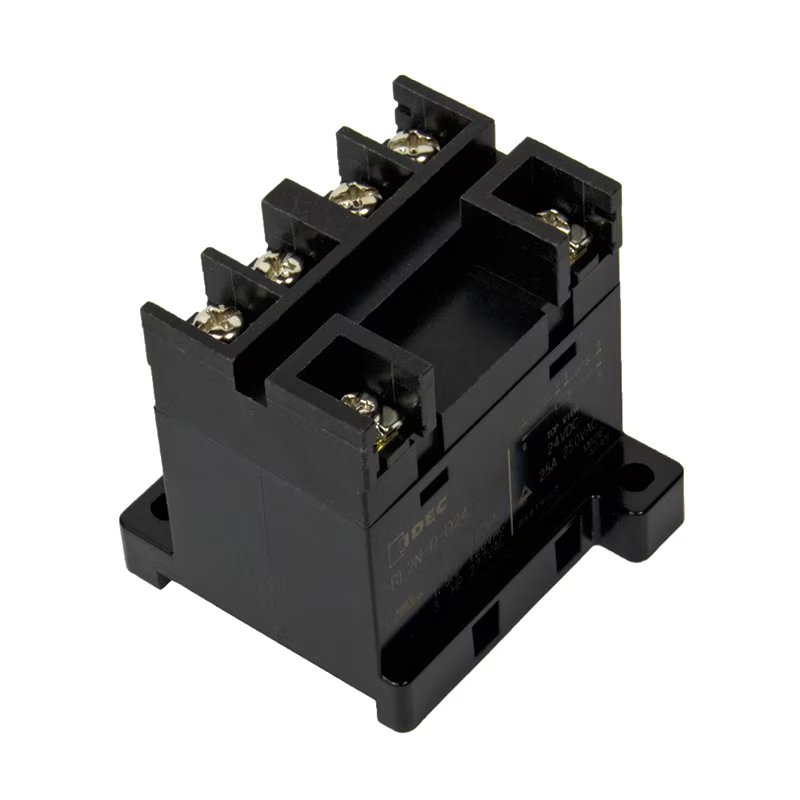

IDEC 2-POLE SCREW TERMINAL DIN 24V DC RELAY RL2N-D-D24

Product Code: RL2N-D-D24

  • Double Make contacts Designed for Motor, Lighting, and Heater Loads RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail Mount with Panel Mount Tabs
Operational Temperature Range (°C) -25 to 55
Operating Humidity 5 to 85%
Terminal Shape Screw Terminal
Brand IDEC
Product Type Power
Coil Voltage DC (V) 24
Contact Material Ag Alloy
Contacts 2X (DPST, Double Make)
Maximum Switching Current (A) 25
Minimum Mechanical Life 1,000,000
No. of Poles 2
Operating Time 30ms Max
Power Consumption (W) 1.9
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 50W x 54H x 53.4D
Weight (g) 90-135
Degree of Protection IP40

Description

The IDEC RL2N-D-D24 is a 24V DC relay designed for robust performance in controlling motor, lighting, and heater loads. It features double make contacts for reliable connectivity and is engineered with a 2-pole screw terminal for secure wiring. This DIN rail-mountable relay is RoHS compliant, ensuring adherence to environmental standards. Ideal for industrial applications, it offers a dependable solution for power switching requirements.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
