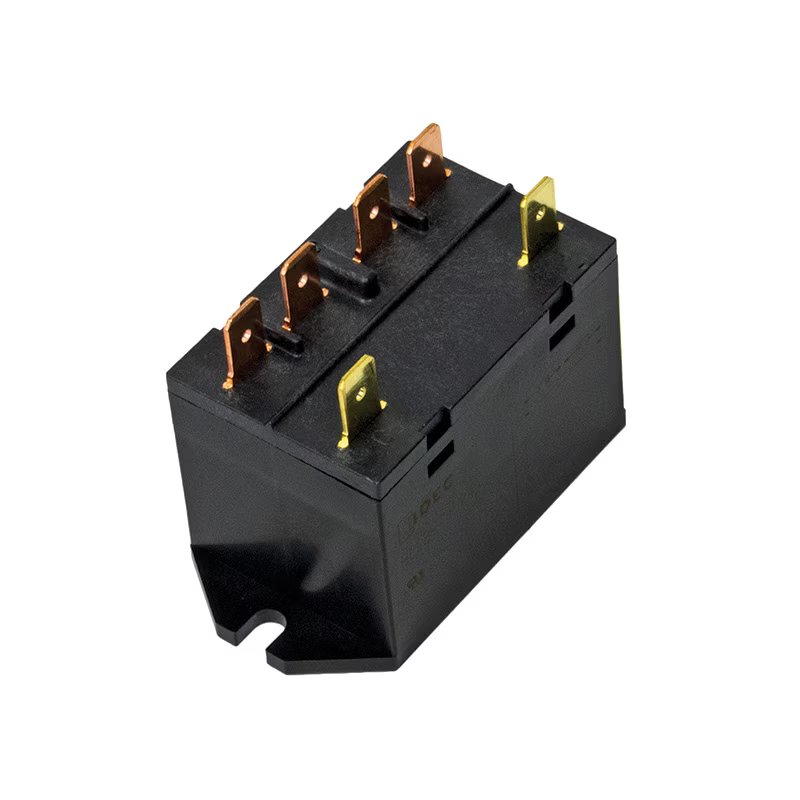

IDEC 2-POLE TAB TERMINAL FLANGE 24V AC RELAY RL2B-T-A24

Product Code: RL2B-T-A24

The IDEC RL2B-T-A24 is a 24V AC relay designed for robust performance in controlling motor, lighting, and heater loads. This 2-pole tab terminal flange relay features Double Make contacts for reliable connectivity. It adheres to RoHS compliance standards, ensuring environmentally safe use. Ideal for industrial applications, this relay offers a dependable solution for power management and automation tasks.

Technical Specifications

Operating Humidity 5 to 85%
Terminal Shape Quick Connect Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Mounting Type Flange Mount
Operational Temperature Range (°C) -25 to 55
Coil Voltage AC (V) 24
Contact Material Ag Alloy
Contacts 2X (DPST, Double Make)
Maximum Switching Current (A) 25
Minimum Mechanical Life 1,000,000
No. of Poles 2
Operating Time 30ms Max
Power Consumption (VA) 1.7 - 2.5
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 33W x 67H X 35D
Weight (g) 90-135
Degree of Protection IP40
