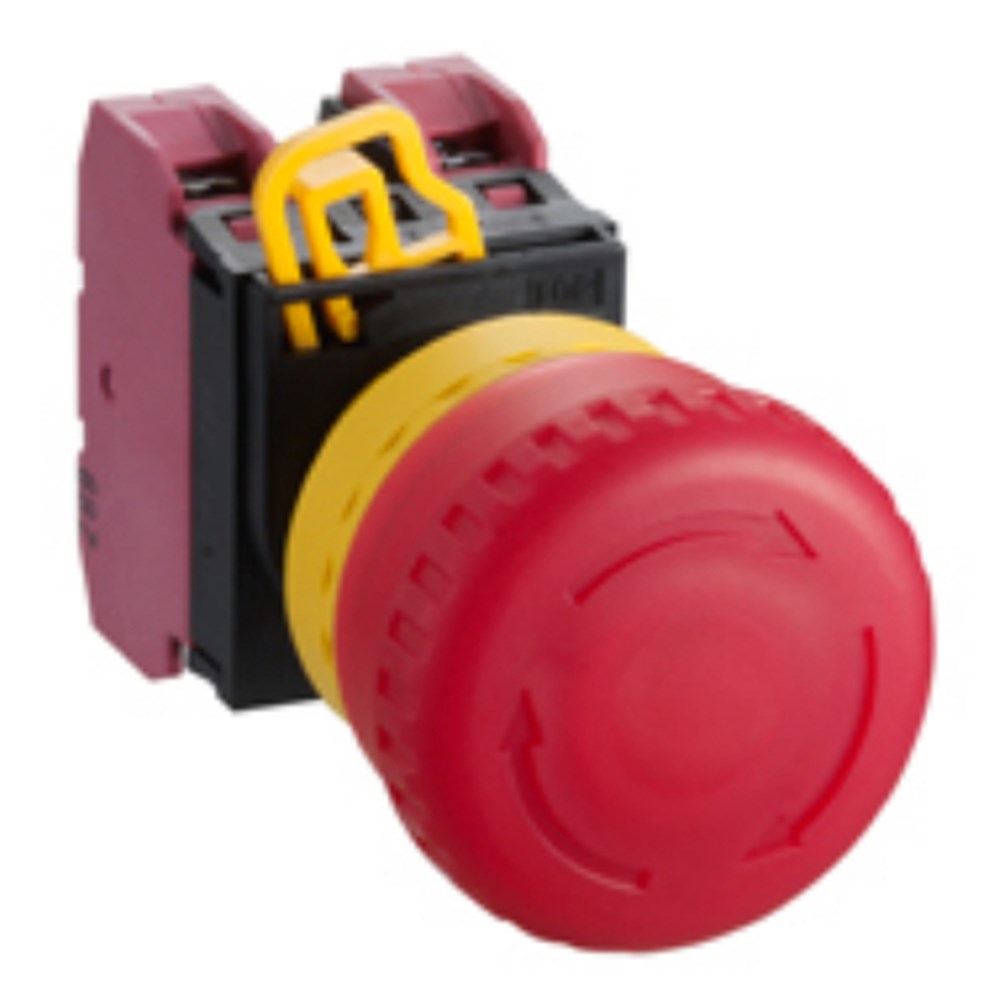

IDEC YW1L-V4E01QM3R ILLUMINATED MUSHROOM EMERGENCY STOP PUSHBUTTON Ã 40MM 1NC 230/240VAC/DC

Product Code: YW1L-V4E01QM3R

The IDEC YW1L-V4E01QM3R is an illuminated mushroom emergency-stop pushbutton, equipped with a 40mm LED indicator for high visibility. It features a pushlock mechanism for rapid shutdown and a pull/turn reset function. This device operates on a 230/240V AC/DC power supply, ensuring compatibility with various electrical systems. Designed for swift activation in critical situations, it enhances safety measures across facilities.

Technical Specifications

LED Colour Red
Brand IDEC
Series YW
Operational Temperature Range (°C) -20 to +55
Contact Material Silver
Contacts 1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Illumination Illuminated
Insulation Resistance (MO) 100
Mode of Operation Pushlock, Pull/Turn Reset
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Voltage AC/DC (V) 230 - 240
Terminal Type Screw (M3.5)
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Degree of Protection IP65 (Front), IP20 (Terminals)
