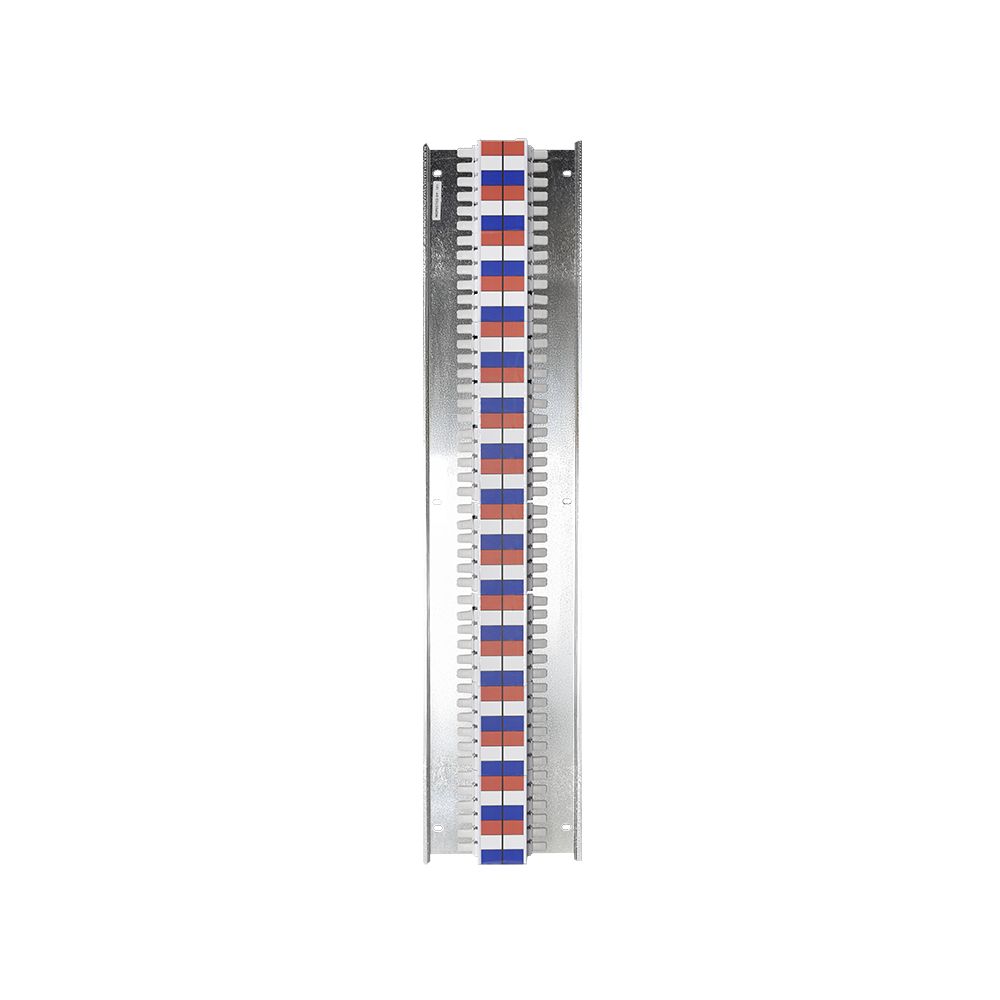

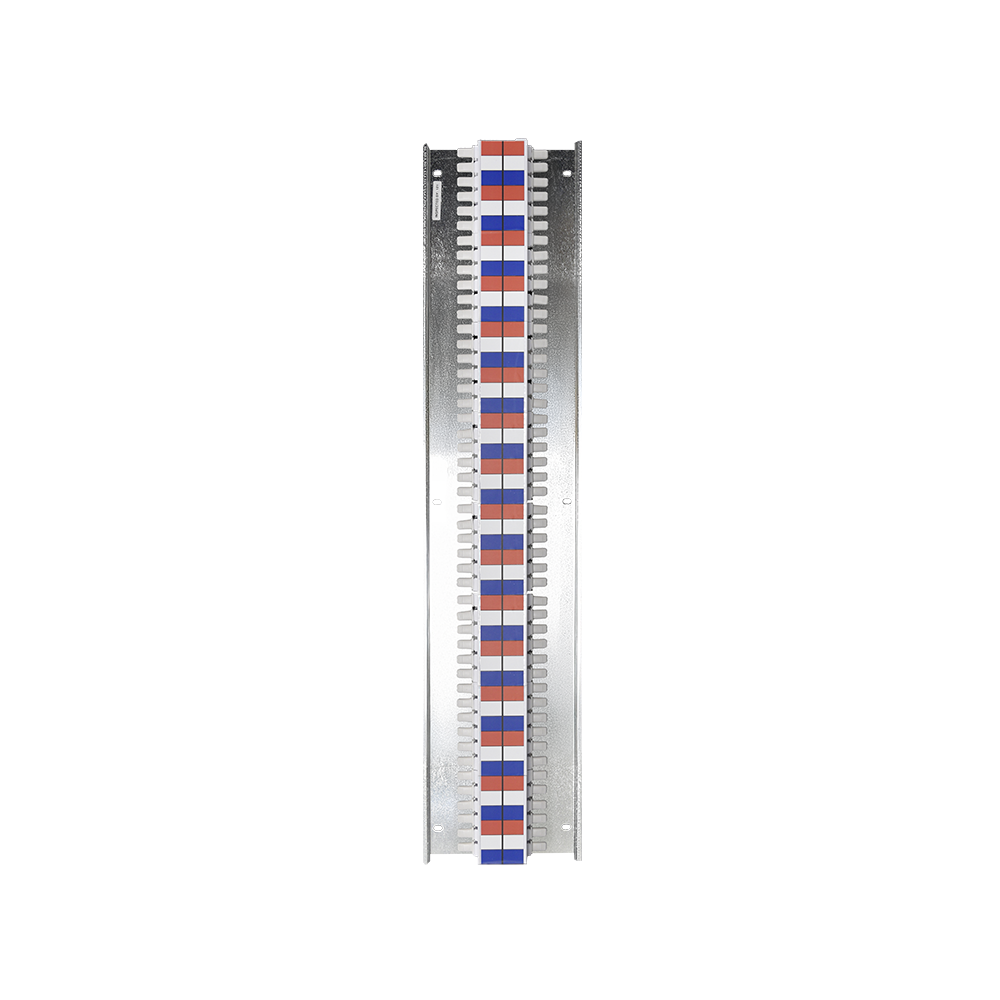

IPD IT96A25N ENCAPSUL. CHASSIS 96P 250A TEE-OFF FD 18mm PITCH

The Encapsulated Chassis 96P is designed for a tee-off feed with a 250A capacity. It has an 18mm pitch and a withstand rating of Icw 25kA/0.1s, 10kA/1s, and Icc 30kA. The chassis features 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.
