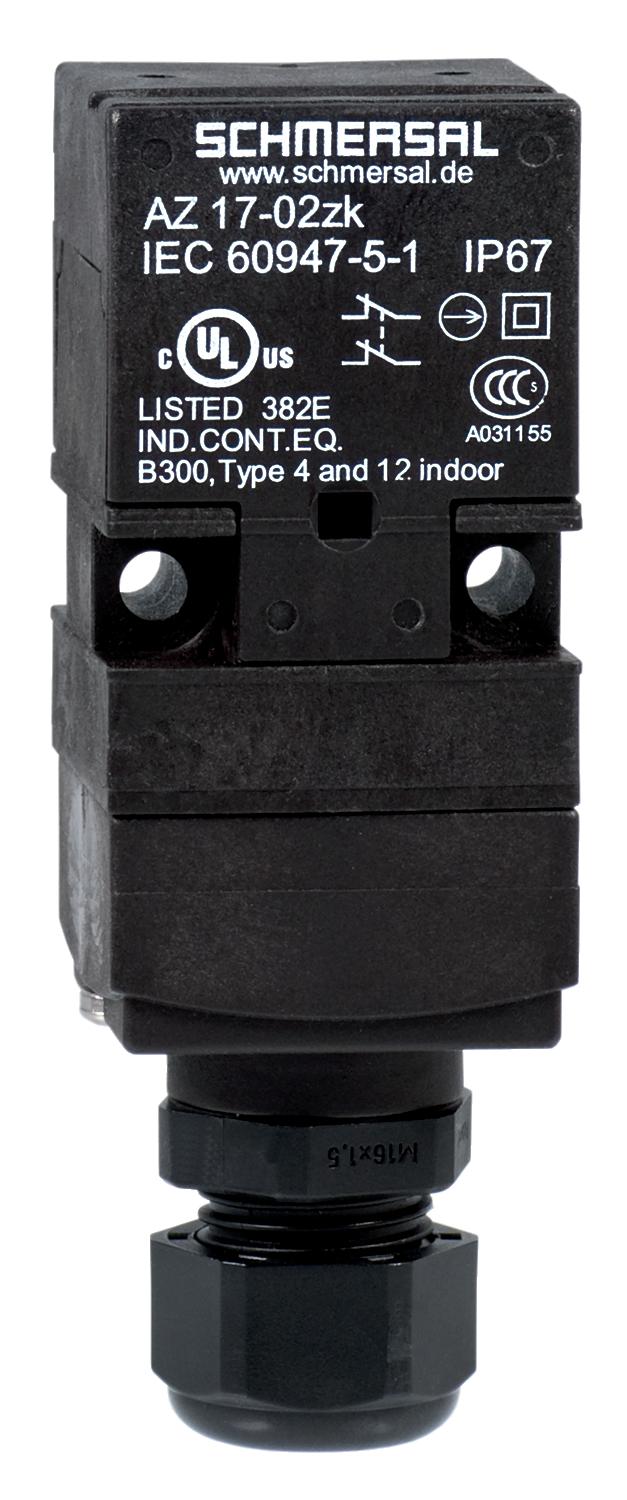

SCHMERSAL AZ17-11ZK SAFETY SWITCH WITH SEPARATE ACTUATOR 101121960

Product Code: 101121960

Ensure machine safety with the Schmersal AZ17 Safety Switch, designed for reliability and durability. This switch features a robust thermoplastic enclosure and comes equipped with both an auxiliary contact and a safety contact. The IDC terminal connector ensures secure wiring, while the switching element includes a normally open (NO) and a normally closed (NC) contact for versatile integration into your safety system. Rated for a thermal test current of 10 A, it operates efficiently under AC-15 utilization category at 230 VAC with 4 A, as well as under DC-13 utilization category at 24 VDC with 4 A. Ideal for various industrial applications, this safety switch is part of Schmersal's commitment to machine safety excellence.

Technical Specifications

Brand SCHMERSAL
Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-06-01
eCl@ss Number, Version 9.0 27-27-34-91
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC002887
ETIM 7.0 EC000030
Gross Weight (g) 60
Height (mm) 98
Housing Construction Form Norm construction design
Installation Conditions Not flush
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 2 x 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Switching Capacity (W) 3
Maximum Temperature (°C) 80
Minimum Actuating Speed (mm/min) 600
Minimum Ambient Temperature (°C) 0
Minimum Cable Cross Section (mm²) 0.34
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 40
Minimum Temperature (°C) -30
Mounting Type Snaps onto standard DIN rail to EN 60715
Net Weight (g) 281.74
No. of Auxiliary Contacts 3
No. of Safety Contacts 3
Overvoltage Category 3
Pollution Degree 2
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 400
Rated Operating Current (mA) 1200
Rated Short-circuit Current (A) 400
Recommended Safety Switchgear PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 110 / 4 - 30 / 18
Sensor Height (mm) 1731
Sensor Length (mm) 30
Series AZ17
Standards EN IEC 60947-5-1 / BG-GS-ET-15
Storage Temperature (°C) -25 to 70
Switching Element 1 NO contact, 1 NC contacts
Switching Principle Slow action
Terminal Type Connector 8 mm, 6-pole, Latching interlocking
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Width (mm) 48
Wire Cross-Section 0.25 mm
Working Principle Magnetic drive
