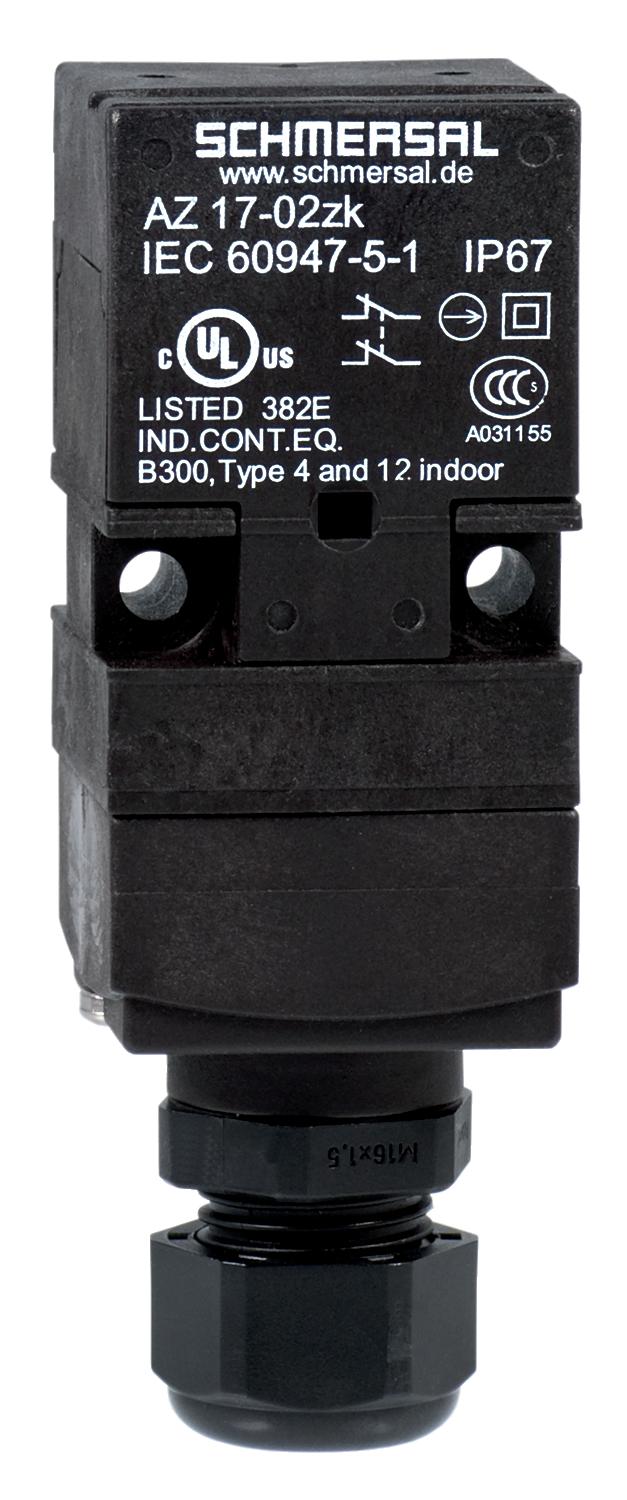

| Actuator Type |
Magnet |
| Enclosure Material |
Glass-fibre, thermoplastic |
| Mounting Type |
Snaps onto standard DIN rail to EN 60715 |
| Storage Temperature (°C) |
-25 to 70 |
| Maximum Ambient Temperature (°C) |
65 |
| Maximum Temperature (°C) |
80 |
| Minimum Ambient Temperature (°C) |
0 |
| Minimum Temperature (°C) |
-30 |
| Gross Weight (g) |
55 |
| Net Weight (g) |
281.74 |
| Installation Conditions |
Not flush |
| Wire Cross-Section |
0.25 mm |
| Enclosure Coating Material |
Painted |
| Brand |
SCHMERSAL |
| Product Type |
Safety Switch |
| Series |
AZ17 |
| Working Principle |
Magnetic drive |
| Housing Construction Form |
Norm construction design |
| EAN |
4030660000000 |
| eCl@ss Number, Version 9.0 |
27-27-34-91 |
| Coding Level According to EN ISO 14119 |
Low |
| ETIM 7.0 |
EC000030 |
| ETIM 6.0 |
EC002887 |
| eCl@ss Number, Version 11.0 |
27-27-06-01 |
| Protection Class of Operating Resource |
3 |
| Cable Note |
All indications including the conductor ferrules. |
| Recommended Safety Switchgear |
PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
| Contact Material |
Silver |
| Maximum Actuating Speed (m/s) |
0.5 |
| Maximum Cable Cross Section (mm²) |
1 x 1 , flexible |
| Maximum Fuse Rating |
6 A gG D-fuse |
| Maximum Switching Capacity (W) |
10 |
| Minimum Actuating Speed (mm/min) |
600 |
| Minimum Cable Cross Section (mm²) |
0.34 |
| Minimum Mechanical Life |
1000000 Operations |
| Minimum Positive Break Force (N) |
19 |
| No. of Auxiliary Contacts |
2 |
| No. of Safety Contacts |
2 |
| Overvoltage Category |
3 |
| Rated Impulse Withstand Voltage (kV) |
4 |
| Rated Insulation Voltage (V) |
400 |
| Rated Operating Current (mA) |
1200 |
| Rated Short-circuit Current (A) |
400 |
| Resistance to Shock (g/ms) |
110 / 4 - 30 / 18 |
| Switching Element |
1 NO contact, 2 NC contacts |
| Switching Principle |
Snap action |
| Terminal Type |
Screw terminals M20 x 1.5 |
| Height (mm) |
98 |
| Width (mm) |
48 |
| Utilisation Category |
DC-13 |
| Utilisation Category DC-13 |
0.5 A |
| Sensor Length (mm) |
31 |
| Sensor Height (mm) |
1811 |
| Degree of Protection |
IP67 |
| Pollution Degree |
3 |
| Standards |
EN IEC 60947-5-1 / BG-GS-ET-15 |
