Actuator Type	Magnet
Enclosure Material	Glass-fibre, reinforced thermoplastic
Gross Weight (g)	50
Net Weight (g)	30
Wire Cross-Section	11 AWG
Enclosure Coating Material	Painted
Minimum Ambient Temperature (°C)	-30
Brand	SCHMERSAL
Series	AZM170
Working Principle	Electromechanical
Housing Construction Form	Norm construction design
EAN	4030660000000
eCl@ss Number, Version 9.0	27-37-12-10
Coding Level According to EN ISO 14119	Low
ETIM 7.0	EC000641
ETIM 6.0	EC000222
eCl@ss Number, Version 11.0	27-27-26-92
Protection Class of Operating Resource	3
Cable Note	All indications including the conductor ferrules.
Maximum Ambient Temperature (°C)	75
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.5
Mounting Type	2 x M5, Cylinder head screw
Storage Temperature (°C)	25 to 85
Contact Material	Silver
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	1
Minimum Mechanical Life	5000000 Operations
Minimum Positive Break Force (N)	16
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Switching Element	Opener (NC)
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Height (mm)	100
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Sensor Length (mm)	30
Sensor Height (mm)	94
Degree of Protection	IP65
Pollution Degree	3
Standards	EN IEC 60947-5-1 / EN IEC 60947-1

Safety Pushbuttons & Operator Devices

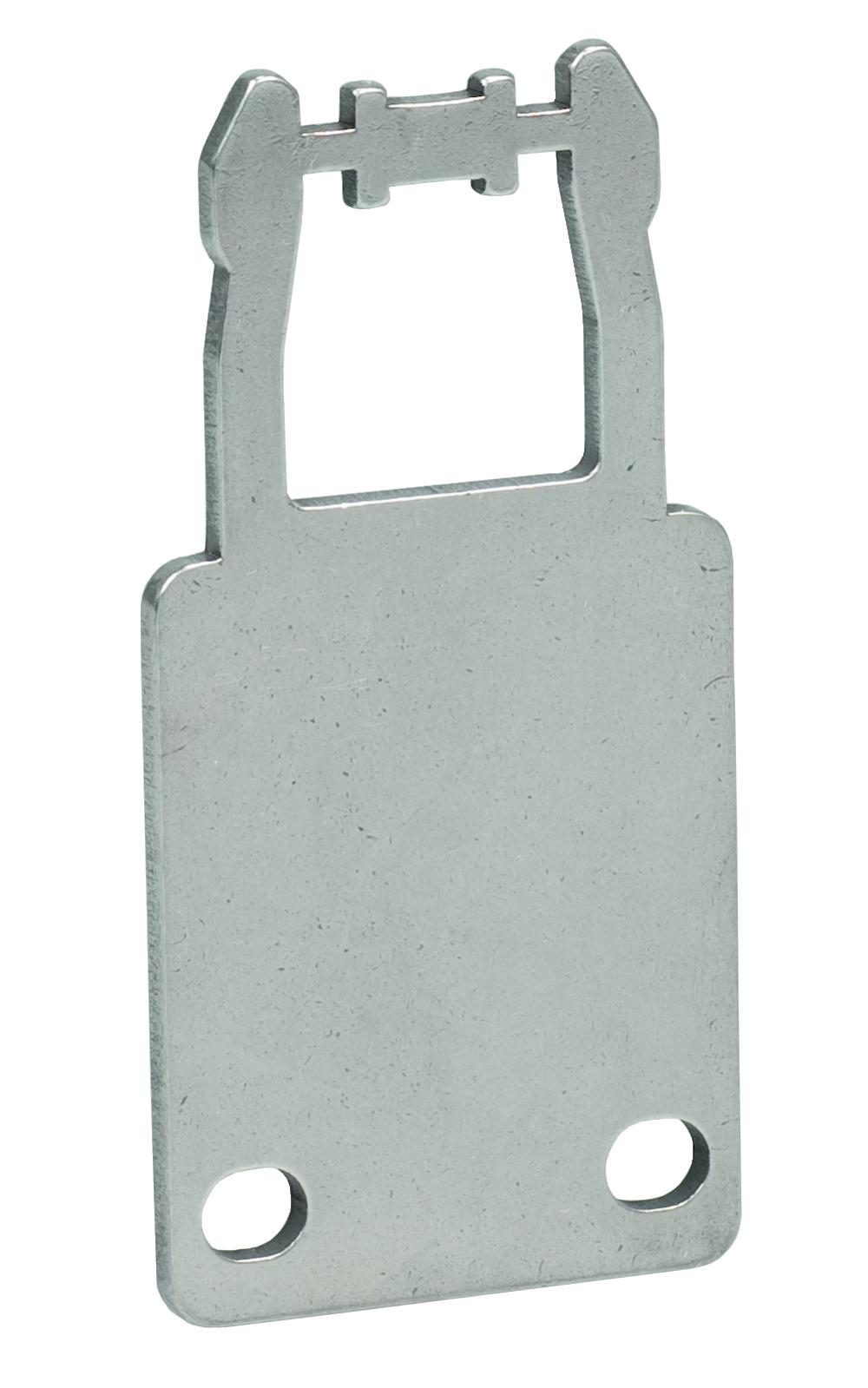

SCHMERSAL AZ 17/170-B11 SOLENOID INTERLOCK 101139788
