Product Code: 101139957

Actuator Type	Magnet
Enclosure Material	Brass
Gross Weight (g)	3828.63
Net Weight (g)	55
Wire Cross-Section	13 AWG
Enclosure Coating Material	Painted
Minimum Ambient Temperature (°C)	-30
Brand	SCHMERSAL
Working Principle	Electromechanical
Housing Construction Form	Norm construction design
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-09
Coding Level According to EN ISO 14119	High
ETIM 7.0	EC000200
ETIM 6.0	EC002887
eCl@ss Number, Version 11.0	27-27-06-09
Protection Class of Operating Resource	3
Cable Note	All indications including the conductor ferrules.
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Mounting Type	A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Storage Temperature (°C)	-40 to 85
Contact Material	Silver
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	4122
Minimum Mechanical Life	5000000 Operations
Minimum Positive Break Force (N)	16
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	1000
Switching Element	Opener (NC)
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Height (mm)	28
Utilisation Category	AC-15
Utilisation Category DC-13	0.05 A
Sensor Length (mm)	30
Sensor Height (mm)	25
Degree of Protection	IP65
Pollution Degree	3
Standards	EN IEC 60947-5-1 / EN IEC 60947-1

Safety Interlocks

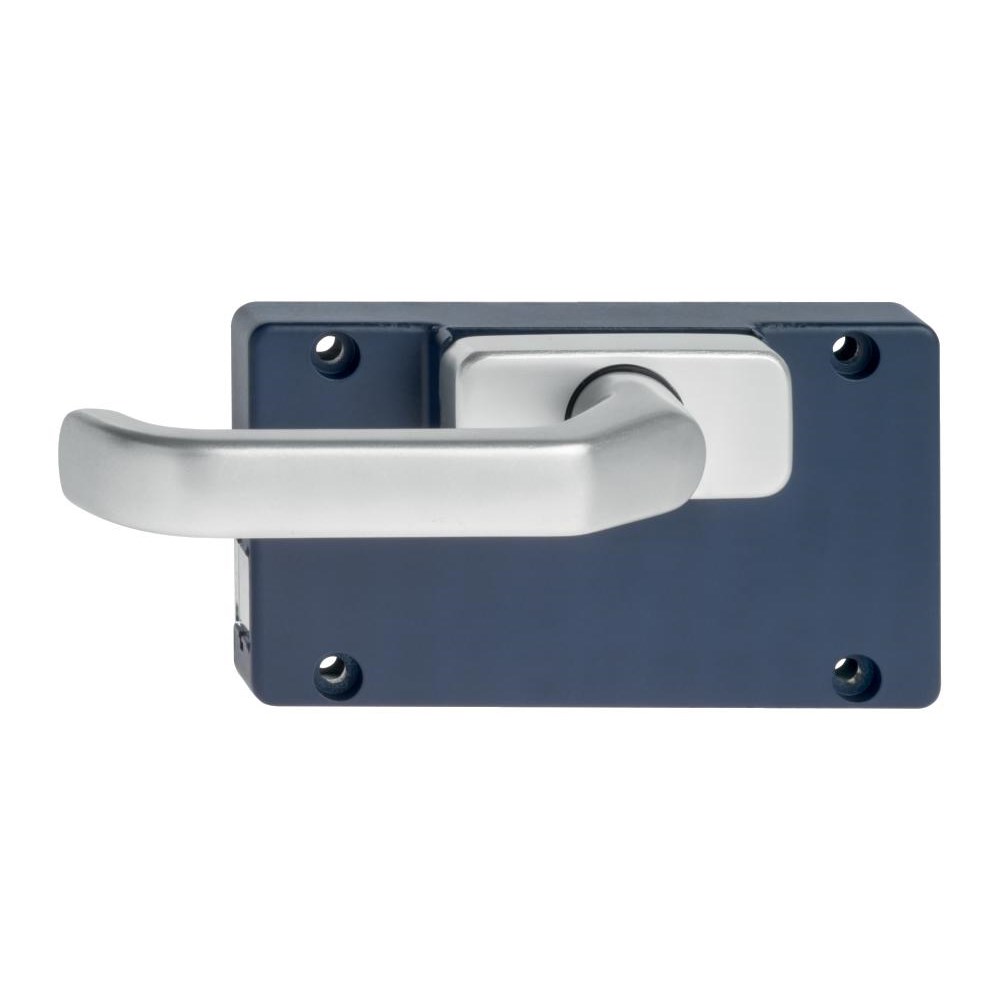

SCHMERSAL ENCLOSED SOLENOID INTERLOCK 101139957
