Product Code: 101140795

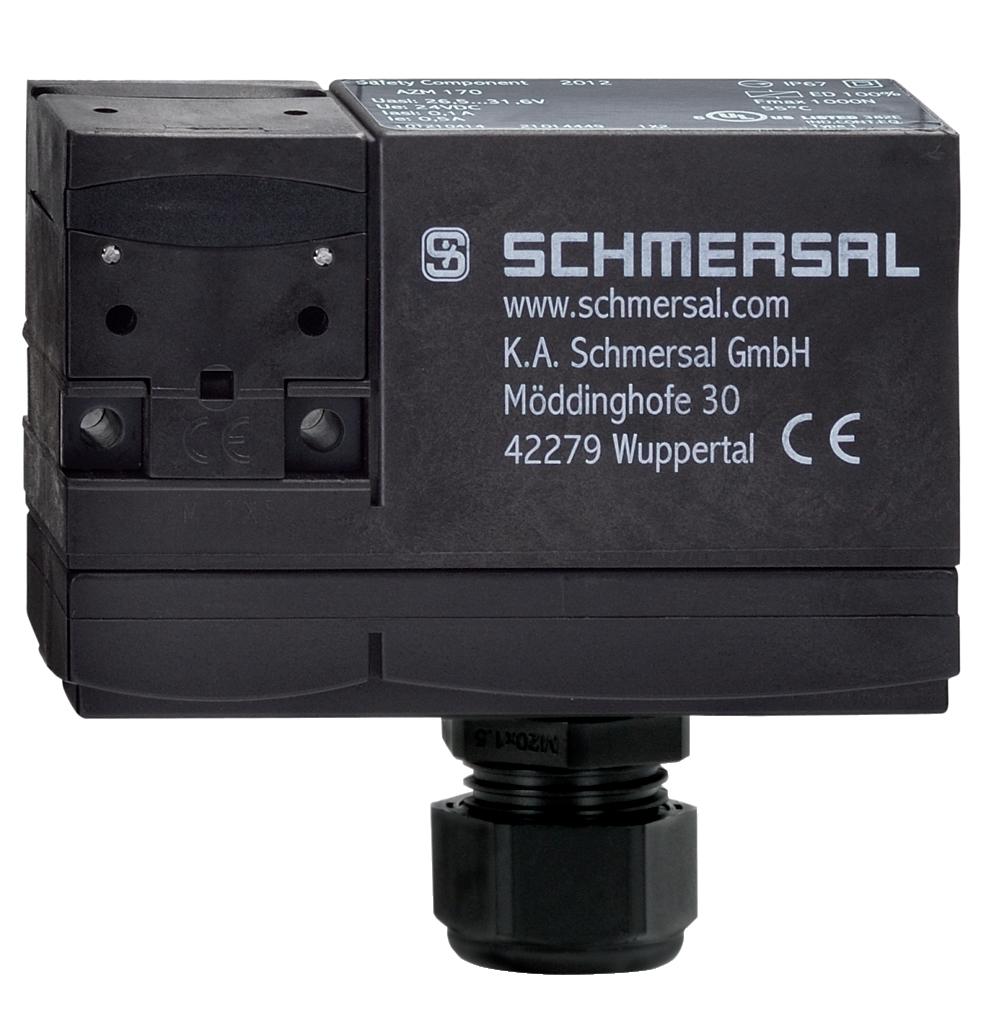

The Schmersal AZM170 series solenoid interlock is a robust machine safety component designed to ensure secure power locking and manual release functionality. This device operates with a power-to-unlock mechanism and offers two actuating directions for versatile integration. It features two safety contacts but does not include auxiliary contacts, focusing purely on safety functions. The interlock utilizes an IDC method for efficient terminal connection and includes normally closed (NC) opener contacts. With a thermal test current of 6 A, the unit is rated for control voltages of 24 VAC/DC. It meets utilisation category AC-15 with a rating of 230 VAC at 4 A and DC-13 at 24 VDC with a current rating of 2.5 A, ensuring reliable performance in various control circuits. Engineered for machine safety applications, the AZM170 type solenoid interlocks by Schmersal are an essential component for any safety-conscious engineering project.

Actuator Type	Magnet
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g)	330
Net Weight (g)	1108
Wire Cross-Section	13 AWG
Enclosure Coating Material	Painted
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-25
Brand	SCHMERSAL
Series	AZM170
Working Principle	Electromechanical
Housing Construction Form	Norm construction design
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-09
Coding Level According to EN ISO 14119	Low
ETIM 7.0	EC002594
ETIM 6.0	EC002594
eCl@ss Number, Version 11.0	27-27-06-07
Protection Class of Operating Resource	3
Cable Note	All indications including the conductor ferrules.
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Mounting Type	A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Storage Temperature (°C)	25 to 85
Contact Material	Silver
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	120
Minimum Mechanical Life	10000000 Operations
Minimum Positive Break Force (N)	30
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	1000
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Height (mm)	100
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Sensor Length (mm)	44
Sensor Height (mm)	25
Degree of Protection	IP67
Pollution Degree	3
Standards	EN IEC 60947-5-1 / EN ISO 14119 / BG-GS-ET-15
