Product Code: 101144263

Secure your machinery with the Schmersal AZM170 Series Solenoid Interlock, designed for machine safety applications. This robust interlock features a power-to-lock function and manual release, ensuring operational security and convenience. It operates in two actuating directions, providing flexibility in installation. With two safety contacts and no auxiliary contacts, it maintains a focus on essential safety functions. The device is equipped with screw terminals for secure connections and an opener (normally closed) configuration for reliable circuit control. The solenoid interlock can handle a thermal test current of 6 A and is rated for a control voltage of 24 VAC/DC. It meets utilisation category AC-15 with a rating of 230 VAC at 4 A and DC-13 at 24 VDC also at 4 A, ensuring compatibility with various control systems. Engineered by Schmersal, a leader in machine safety solutions, the AZM170 series is an ideal choice for engineers seeking dependable interlocking mechanisms without compromising on performance or safety standards.

Actuator Type	Roller lever H65
Enclosure Material	Glass-fibre, reinforced thermoplastic
Gross Weight (g)	2620
Net Weight (g)	45
Wire Cross-Section	13 AWG
Enclosure Coating Material	Painted
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-25
Brand	SCHMERSAL
Series	AZM170
Working Principle	Mechanical
Housing Construction Form	Norm construction design
EAN	4030660000000
eCl@ss Number, Version 9.0	27-37-12-10
Coding Level According to EN ISO 14119	Low
ETIM 7.0	EC002594
ETIM 6.0	EC000223
eCl@ss Number, Version 11.0	27-44-01-06
Cable Note	All indications including the conductor ferrules.
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	1 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Storage Temperature (°C)	-40 to 85
Contact Material	Silver
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse quick blow
Minimum Actuating Speed (mm/min)	1
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	20
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Terminal Type	Cable
Thermal Test Current (A)	0.25
Height (mm)	69
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	2.5 A
Utilisation Category DC-13	0.05 A
Sensor Length (mm)	46.5
Sensor Height (mm)	25
Degree of Protection	IP67
Pollution Degree	3
Standards	EN IEC 60947-5-1 / BG-GS-ET-15

Safety Interlocks

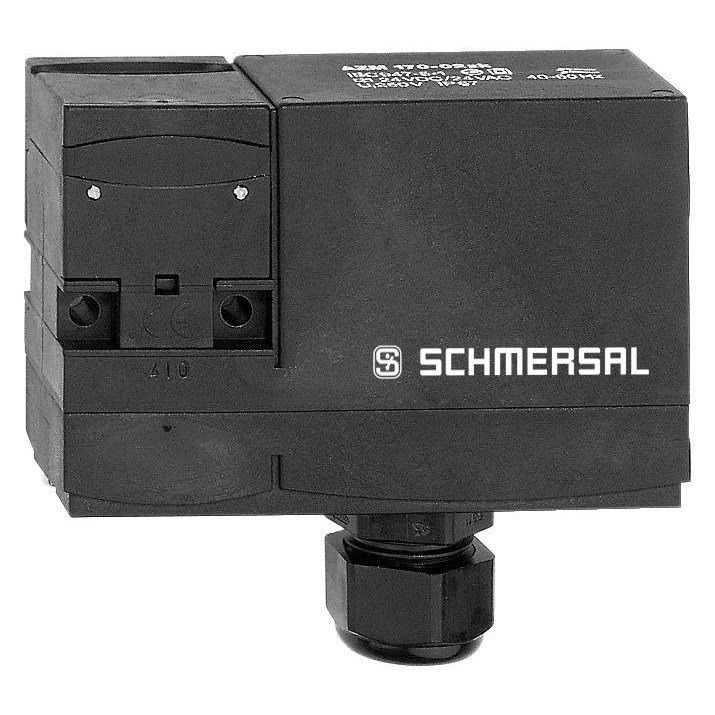

SCHMERSAL AZM170SK-02ZRKA-24VAC/DC SOLENOID INTERLOCK 101144263

Product Code: 101144263
