Product Code: 101152787

The Schmersal AZ15 Safety Switch is a robust machine safety solution designed with a thermoplastic enclosure and an ejection force feature, making it ideal for elevator applications. This switch ensures secure operations with one safety contact and no auxiliary contacts. It features a screw connection terminal connector and an NC (normally closed) opener switching element. With a thermal test current of 10 A, it operates efficiently under utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. The AZ15 series emphasizes durability and reliability in safeguarding equipment and personnel.

Brand	SCHMERSAL
Actuator Type	Magnet
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
eCl@ss Number, Version 11.0	27-37-12-43
eCl@ss Number, Version 9.0	23-13-01-03
Enclosure Material	Aluminium
ETIM 6.0	EC001029
ETIM 7.0	EC002593
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	687
Minimum Ambient Temperature (°C)	-15
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-30
Net Weight (g)	66.169
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	90
Sensor Length (mm)	13
Series	AZ15
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	-25 to 85
Switching Element	NC contact, NO contact
Switching Principle	Snap action
Terminal Type	Screw terminals M20 x 1.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.34 mm
Working Principle	Electromechanical

Safety Pushbuttons & Operator Devices

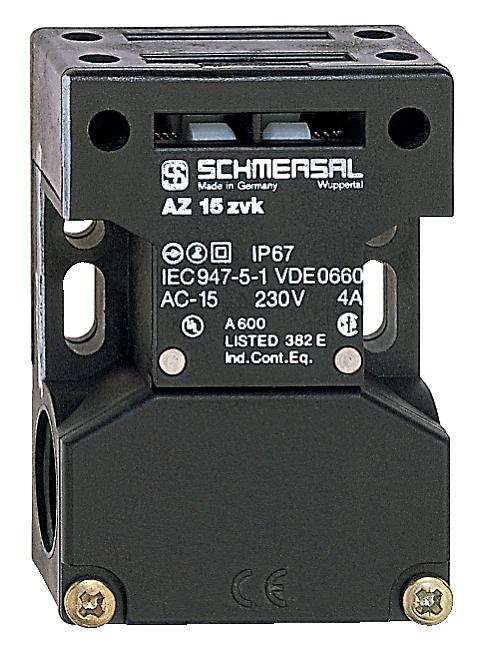

SCHMERSAL AZ15ZVK-M16 SAFETY SWITCH WITH SEPARATE ACTUATOR 101152787
