Brand	SCHMERSAL
Actuator Type	Roller lever
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
Contact Material	Silver
Degree of Protection	IP67 / IP65
EAN	4030660000000
eCl@ss Number, Version 11.0	27-37-12-10
eCl@ss Number, Version 9.0	27-44-01-02
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
ETIM 6.0	EC000030
ETIM 7.0	EC001855
Gross Weight (g)	450
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000000 Operations
Minimum Positive Break Force (N)	20
Net Weight (g)	120
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	27
Sensor Length (mm)	33
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-40 to 85
Switching Element	Opener (NC)
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical

Safety Pushbuttons & Operator Devices

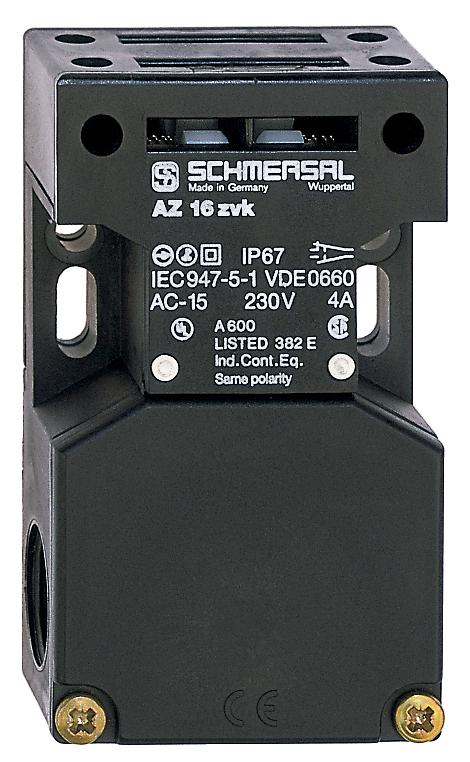

SCHMERSAL SAFETY SWITCH 101157379
